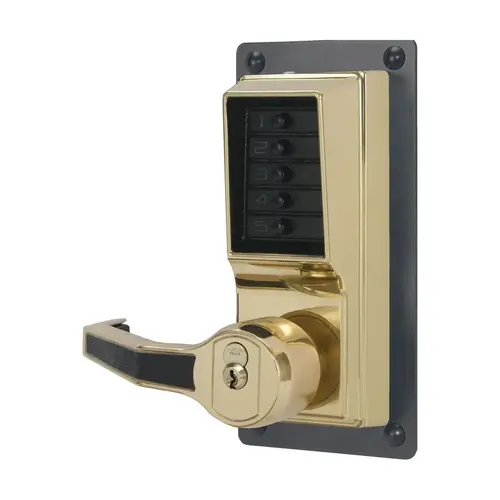

Kaba Access LLP1020S-03-41 Simplex LP1020 Mechanical Pushbutton Exit Device Lever with Key Override Bright Brass
Item #: LLP1020S-03-41 by Ilco
Brand: Kaba Access
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Exit Device Strike: Supplied with Exit Device
- Tailpiece: 2¾" (70 mm) tailpiece for Exit Device operation from outside Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
- Minimum Stile Recommended: 5" (127 mm)
- Weight: 8 lbs. (3.6 kg)
- Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
- Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
- Door Preparation: Recessed through bolts may be required for Exit Device preparation
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm) Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Color
Bright Brass
Cylinder Type
Schlage FSIC Less Core
Package Qty
1
Color Code
605/US3
Lock Platform
Exit Device Trim
Base Material
Brass
Finish
605/US3
Grade
Grade 1
Handing
Left Hand
Keyed
Yes
Handle Type
Lever
Stile Type
Wide Stile
UL Listing Type
3-hour UL/ULC fire rating for "A" label doors
Door Handing
Right Hand or Right Hand Reverse / Left Hand or Left Hand Reverse
Door Thickness Range
1-3/8" to 2-1/4"
Stile Width
5"
Key Override
S - LFIC, Schlage, Core note included
Features
Vandal resistant, solid metal pushbuttons
Lock Type
Exit Device Trim
Door Strike
Sold with exit device (sold separately)
Segment
Door Hardware
Product Overview
Exit Trim Lever Lock, Combination and Key Override, Left Hand Reverse, Schlage FSIC Prep, Less Core, Bright Brass
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
