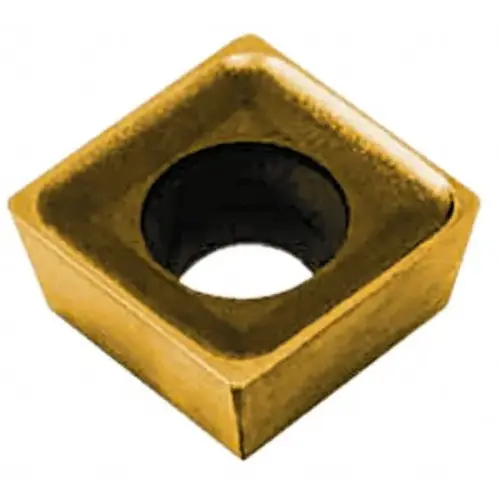

LMT 1052251 Milling Insert: SNKX 1205 AN-TR, LCKP10M, Solid Carbide Coated

Item #: 1052251 by LMT

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$30.43

/each
SAVE UP TO 3.04
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

SNKX 1205 AN-TR LCKP10M

Corner Radius (mm)

2.00

Inscribed Circle (mm)

12.70

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Single or Double Sided Insert

Double

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Manufacturer Grade

LCKP10M

Cutting Edge Effective Length (Decimal Inch)

0.5000

Hole Diameter (Mm) ( - 0 Decimals)

0.20

Inscribed Circle (Inch)

1/2

Included Angle Degree

30

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2047

Insert Size Code

1205

Insert Style

SNKX

Secondary Workpiece Material Code

P

Chip Breaker

TR

Rake Angle

30

Insert Shape

Square

Corner Radius (Inch)

5/64

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Right Hand

Secondary Workpiece Material

Steel

Multi-use Tool

No

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

12.70

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5000

Vendor Drop Ship

N

Thickness (Inch)

7/32

Thickness (Decimal Inch - 4 Decimals)

0.2189

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Material Grade

C2

Manufacturers Catalog Number

1052251

Length (Inch)

1/2

Length (Decimal Inch - 4 Decimals)

0.5000

Corner Radius (Decimal Inch)

0.0787

Coating/Finish

Coated

Coating Process

PVD

Series

SNKX

Insert Material

Solid Carbide

Thickness (mm)

5.56

Standards

ISO

Number of Cutting Edges

8

ANSI Code

SNKX 1205 AN-TR LCKP10M

Length (mm)

12.70

Material Application

Cast Iron

Product Overview
Milling Insert: SNKX 1205 AN-TR, LCKP10M, Solid Carbide Coated, 0.2189" Thick
