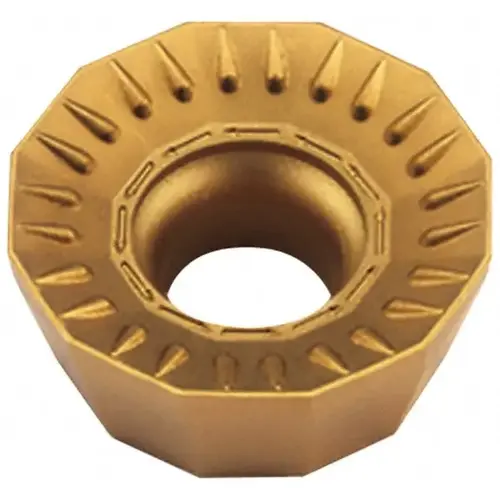

Milling Insert: XCKX1606ZDR-TR, LC240T, Solid Carbide TiAIN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

LMT 1055677 Milling Insert: XCKX1606ZDR-TR, LC240T, Solid Carbide TiAIN

Item #: 1055677 by LMT

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$24.55

/each
SAVE UP TO 2.46
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

XCKX1606ZDR-TR LCP40M

Corner Radius (mm)

0.50

Inscribed Circle (mm)

15.90

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Length Range (Decimal Inch)

0.6000 to 0.6500

Single or Double Sided Insert

Double

Inscribed Circle Range (Decimal Inch)

0.6000 to 0.7000

Manufacturer Grade

LCP40M

Cutting Edge Effective Length (Decimal Inch)

0.6300

Hole Diameter (Mm) ( - 0 Decimals)

0.23

Included Angle Degree

23

Relief Angle

7

Hole Diameter (Decimal Inch)

0.2283

Insert Size Code

1606

Insert Style

XCKX

Secondary Workpiece Material Code

M

Chip Breaker

TR

Rake Angle

25

Inscribed Circle (Decimal Inch)

0.6260

Insert Hand

Right Hand

Secondary Workpiece Material

Stainless Steel

Multi-use Tool

No

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

16.00

Width (Decimal Inch - 4 Decimals)

0.6299

Vendor Drop Ship

Y

Thickness (Inch)

1/4

Thickness (Decimal Inch - 4 Decimals)

0.2500

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C5

Manufacturers Catalog Number

1055677

Length (Decimal Inch - 4 Decimals)

0.6299

Corner Radius (Decimal Inch)

0.0197

Coating/Finish

TiAIN

Coating Process

PVD

Series

XCKX

Insert Material

Solid Carbide

Thickness (mm)

6.35

Standards

ISO

Number of Cutting Edges

12

ANSI Code

XCKX1606ZDR-TR LCP40M

Material Application

Steel

Product Overview
Milling Insert: XCKX1606ZDR-TR, LC240T, Solid Carbide Coated, 1/4" Thick
