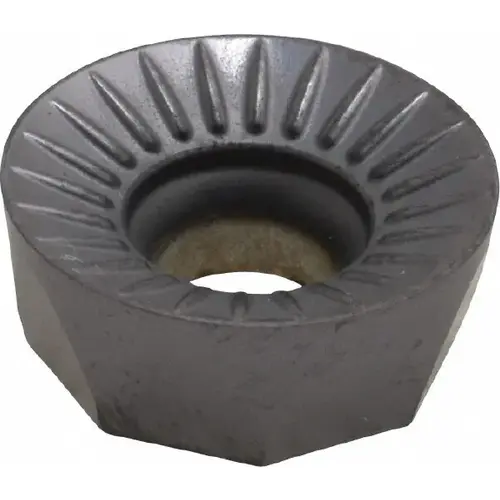

LMT 1068435 Milling Insert: RCKX1606MO-TR, LC610T, Solid Carbide Coated
Item #: 1068435 by LMT
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
RCKX1606MO-TR LCKP10M
Inscribed Circle (mm)
15.90
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.6000 to 0.7000
Manufacturer Grade
LCKP10M
Cutting Edge Effective Length (Decimal Inch)
0.6300
Hole Diameter (Mm) ( - 0 Decimals)
0.23
Included Angle Degree
23
Relief Angle
7
Hole Diameter (Decimal Inch)
0.2283
Insert Size Code
1606
Insert Style
RCKX
Secondary Workpiece Material Code
P
Chip Breaker
TR
Rake Angle
23
Insert Shape
Round
Inscribed Circle (Decimal Inch)
0.6260
Insert Hand
Right Hand
Secondary Workpiece Material
Steel
Multi-use Tool
No
Insert Holding Method
Screw
Coating Classification
PVD
Width (mm - 2 Decimals)
16.00
Width (Decimal Inch - 4 Decimals)
0.6299
Vendor Drop Ship
N
Thickness (Inch)
1/4
Thickness (Decimal Inch - 4 Decimals)
0.2500
Primary Workpiece Material Code
K
Primary Workpiece Material
Cast Iron
Material Grade
C2
Manufacturers Catalog Number
1068435
Coating/Finish
Coated
Coating Process
PVD
Series
RCKX
Insert Material
Solid Carbide
Thickness (mm)
6.35
Standards
ISO
Number of Cutting Edges
8
ANSI Code
RCKX1606MO-TR LCKP10M
Material Application
Cast Iron
Product Overview
Milling Insert: RCKX1606MO-TR, LC610T, Solid Carbide Coated, 1/4" Thick
