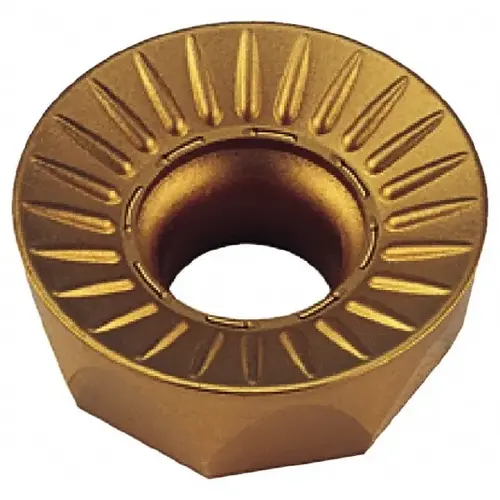

LMT 1069506 Milling Insert: RCHX 1606 MO-TR, LC240T, Solid Carbide TiAIN
Item #: 1069506 by LMT
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
RCHX 1606 MO-TR 1195-14 TR LCP40M
Inscribed Circle (mm)
16.00
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.6000 to 0.7000
Manufacturer Grade
LCP40M
Cutting Edge Effective Length (Decimal Inch)
0.6300
Hole Diameter (Mm) ( - 0 Decimals)
0.23
Included Angle Degree
23
Relief Angle
7
Hole Diameter (Decimal Inch)
0.2283
Insert Size Code
1606
Insert Style
RCHX
Secondary Workpiece Material Code
M
Chip Breaker
TR
Rake Angle
23
Insert Shape
Round
Inscribed Circle (Decimal Inch)
0.6299
Insert Hand
Right Hand
Secondary Workpiece Material
Stainless Steel
Multi-use Tool
No
Insert Holding Method
Screw
Coating Classification
PVD
Width (mm - 2 Decimals)
16.00
Width (Decimal Inch - 4 Decimals)
0.6299
Vendor Drop Ship
Y
Thickness (Inch)
1/4
Thickness (Decimal Inch - 4 Decimals)
0.2500
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
C5
Manufacturers Catalog Number
1069506
Coating/Finish
TiAIN
Coating Process
PVD
Series
RCHX
Insert Material
Solid Carbide
Thickness (mm)
6.35
Standards
ISO
ANSI Code
RCHX 1606 MO-TR 1195-14 TR LCP40M
Material Application
Steel
Product Overview
Milling Insert: RCHX 1606 MO-TR, LC240T, Solid Carbide Coated, 1/4" Thick
