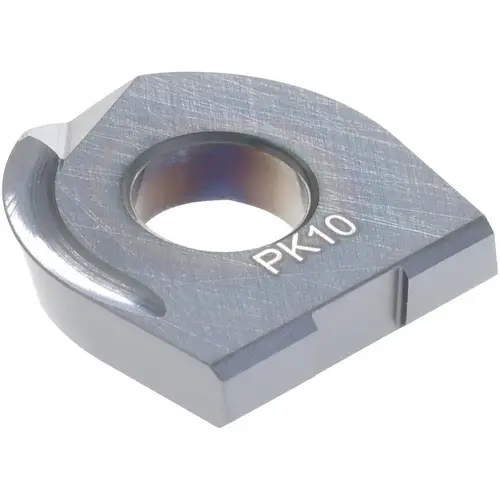

LMT 6122825-XCP10 Milling Insert: WPR 0500-CF, LC610T, Solid Carbide - pack of 10
Item #: 6122825-XCP10 by LMT
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
WPR 0500-CF LC610T
Inscribed Circle (mm)
12.70
Thickness Range (Decimal Inch)
0.1000 to 0.1250
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.5000 to 0.5100
Manufacturer Grade
LC610T
Cutting Edge Effective Length (Decimal Inch)
0.5000
Inscribed Circle (Inch)
1/2
Insert Size Code
0500
Insert Style
WPR
Secondary Workpiece Material Code
P
Chip Breaker
CF
Insert Shape
Ball Nose Rounded Tip
Inscribed Circle (Decimal Inch)
0.5000
Insert Hand
Right Hand
Secondary Workpiece Material
Steel
Multi-use Tool
No
Insert Holding Method
Screw
Coating Classification
PVD
Width (mm - 2 Decimals)
12.70
Width (Inch)
1/2
Width (Decimal Inch - 4 Decimals)
0.5000
Vendor Drop Ship
N
UNSPSC Code
23291601
Thickness (Decimal Inch - 4 Decimals)
0.1000
Primary Workpiece Material Code
K
Primary Workpiece Material
Cast Iron
Material Grade
C2
Manufacturers Catalog Number
6122825
Coating/Finish
TiAlN
Coating Process
PVD
Series
WPR
Insert Material
Solid Carbide
Thickness (mm)
2.54
Standards
ISO
Number of Cutting Edges
2
ANSI Code
WPR 0500-CF LC610T
Material Application
Cast Iron
Product Overview
Milling Insert: WPR 0500-CF, LC610T, Solid Carbide Coated, 0.1" Thick
