Milling Insert: WPR 1000-N, LC610T, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

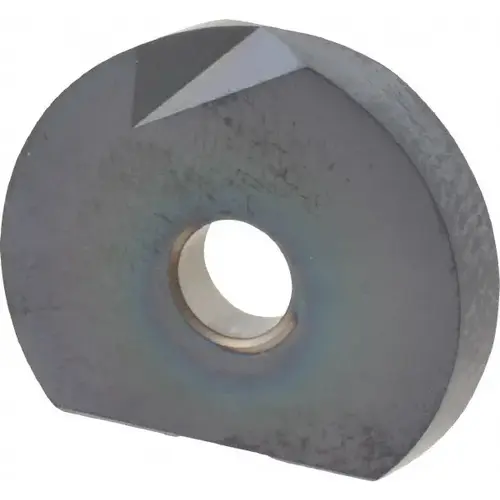

LMT 6122860 Milling Insert: WPR 1000-N, LC610T, Solid Carbide TiAlN

Item #: 6122860 by LMT

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$88.36

/each
SAVE UP TO 8.84
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 49 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

WPR 1000-N LC610T

Inscribed Circle (mm)

25.40

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

1.0000+

Manufacturer Grade

LC610T

Cutting Edge Effective Length (Decimal Inch)

10.0000

Inscribed Circle (Inch)

1

Insert Size Code

1000

Insert Style

WPR

Secondary Workpiece Material Code

P

Chip Breaker

N

Insert Shape

Ball Nose Rounded Tip

Inscribed Circle (Decimal Inch)

1.0000

Insert Hand

Right Hand

Secondary Workpiece Material

Steel

Multi-use Tool

No

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

25.40

Width (Inch)

1

Width (Decimal Inch - 4 Decimals)

1.0000

Vendor Drop Ship

N

Thickness (Decimal Inch - 4 Decimals)

0.1600

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Material Grade

C2

Manufacturers Catalog Number

6122860

Coating/Finish

TiAlN

Coating Process

PVD

Series

WPR

Insert Material

Solid Carbide

Thickness (mm)

4.06

Standards

ISO

Number of Cutting Edges

2

ANSI Code

WPR 1000-N LC610T

Material Application

Cast Iron

Product Overview
Milling Insert: WPR 1000-N, LC610T, Solid Carbide Coated, 0.16" Thick
