Features
Iso Code
WPR 0750-N LC610T
Inscribed Circle (mm)
19.05
Thickness Range (Decimal Inch)
0.1000 to 0.1250
Single or Double Sided Insert
Single
Inscribed Circle Range (Decimal Inch)
0.7000 to 1.0000
Manufacturer Grade
LC610T
Cutting Edge Effective Length (Decimal Inch)
0.7500
Inscribed Circle (Inch)
3/4
Insert Size Code
0750
Insert Style
WPR
Secondary Workpiece Material Code
P
Chip Breaker
N
Insert Shape
Ball Nose Rounded Tip
Inscribed Circle (Decimal Inch)
0.7500
Insert Hand
Right Hand
Secondary Workpiece Material
Steel
Multi-use Tool
No
Insert Holding Method
Screw
Coating Classification
PVD
Width (mm - 2 Decimals)
19.05
Width (Inch)
3/4
Width (Decimal Inch - 4 Decimals)
0.7500
Vendor Drop Ship
N
Thickness (Decimal Inch - 4 Decimals)
0.1200
Primary Workpiece Material Code
K
Primary Workpiece Material
Cast Iron
Material Grade
C2
Manufacturers Catalog Number
6122869
Coating/Finish
TiAlN
Coating Process
PVD
Series
WPR
Insert Material
Solid Carbide
Thickness (mm)
3.05
Standards
ISO
Number of Cutting Edges
2
ANSI Code
WPR 0750-N LC610T
Material Application
Cast Iron
Product Overview

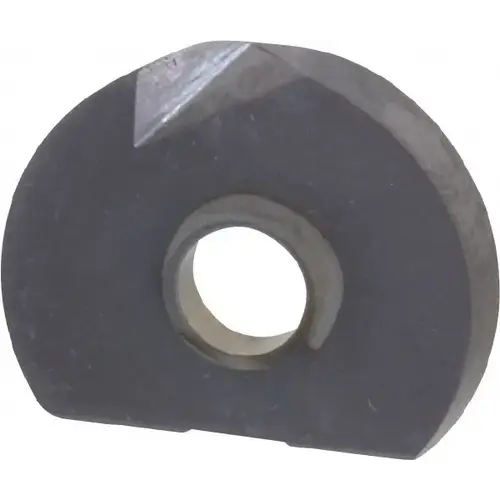

Milling Insert: WPR 0750-N, LC610T, Solid Carbide Coated, 0.12" Thick
