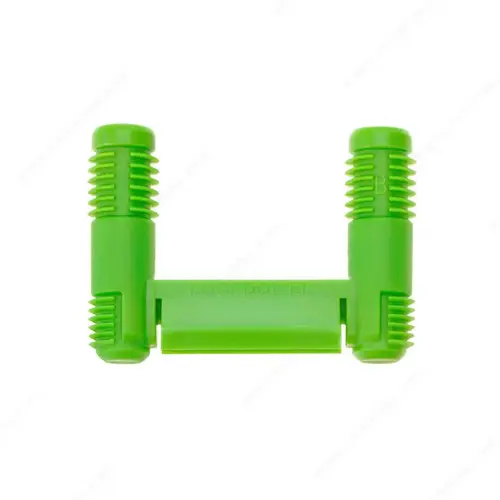

Lockdowel 4226910-XCP2000 Barbed H-Clip - pack of 2000
Item #: 4226910-XCP2000 by Lockdowel
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Green
Panel Thickness
Min. 3/4 in
Material
Nylon 6-6
Length
1 9/16 in
Standards and Certifications
ANSI/BIFMA, AWI
Drilling Diameter
5/16 in
Height - Overall Dimensions
1 3/16 in
Insertion Type
Permanent
Product Overview
Permanent and invisible connection
The main component in the H-clip system. Compresses for insertion and flexes out when fully inserted to provide over 100 lbs of pull force. H-clip construction is permanent once assembled.
The fasteners simply snap into routed slots so no tools are needed and assembly is quick and easy.
After assembly they are invisible, so there is no more end panel cover-up. Each fastener creates a tight joint and a finished look.
The Channel Lock fastening system guarantees fasteners are positioned correctly every time because precision holes and routes are pre-drilled with CNC equipment. Products have been independent laboratory tested and meet all ANSI/BIFMA test standards.
The Channel Lock fastening system is designed with disassembly in mind. Simply slide parts out of the routed slots and reassemble them elsewhere as needed.
Advantages And Benefits
- No need for tools, glue or screws
- Easy assembly
- Sturdy, permanent joint
- Pull force: over 100 lbs.
- Sheer force: over 100 lbs.
- Can be installed in a wide range of materials such as particle board, plywood, MDF, and selected plastic materials
Disclaimer
Requires CNC routing capability and edge boring machine
*Spring pin and router bit are sold separately
The main component in the H-clip system. Compresses for insertion and flexes out when fully inserted to provide over 100 lbs of pull force. H-clip construction is permanent once assembled.
The fasteners simply snap into routed slots so no tools are needed and assembly is quick and easy.
After assembly they are invisible, so there is no more end panel cover-up. Each fastener creates a tight joint and a finished look.
The Channel Lock fastening system guarantees fasteners are positioned correctly every time because precision holes and routes are pre-drilled with CNC equipment. Products have been independent laboratory tested and meet all ANSI/BIFMA test standards.
The Channel Lock fastening system is designed with disassembly in mind. Simply slide parts out of the routed slots and reassemble them elsewhere as needed.
Advantages And Benefits
- No need for tools, glue or screws
- Easy assembly
- Sturdy, permanent joint
- Pull force: over 100 lbs.
- Sheer force: over 100 lbs.
- Can be installed in a wide range of materials such as particle board, plywood, MDF, and selected plastic materials
Disclaimer
Requires CNC routing capability and edge boring machine
*Spring pin and router bit are sold separately
