This CRL Mortise Mounted Shear Lock offers the advantage of a totally concealed locking mechanism featuring a patented design offering unique advances. Unique mounting features provide a "floating" action of both the lock assembly and the armature. This design allows the magnet assembly to move towards the armature during the locking process. In this manner, the GF3000 Series is able to overcome gaps of up to 1/4" (6 mm) without current inrush.
Once engaged, the Shear Lock provides 3000 lbs. holding force, without high operating temperatures. The circuitry automatically adjusts input voltage, allowing for operation from 12 to 24 Volt DC power sources. The Shear Lock is ideally suited for Herculite type doors with top or bottom rails, as well as commercial grade hollow metal doors and frames. All models offer a built-in automatic relock feature that can be adjusted from 1 to 30 seconds. Universal hardware is included for installation into flush or recessed depth door edge. The "BRD" model is available for floor mounting applications when no top rail mounting is available.SPECIFICATIONS:
Holding Force: 2700 - 3000 Lbs. (1225 - 1361 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection Requires a Filtered, Regulated Power Supply
Current Draw: 900mA @ 12V DC, 450mA @ 24V DCNOTE: A complete list of accessories, such as Mounting Brackets, Power Supplies, Transformers, and Keypads are available.
Product Warning:
This item requires a filtered, regulated 12 to 24 VDC power supply or filtered unregulated (using/transformer with rectifier) 12 to 16 VDC voltage selection is automatic.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

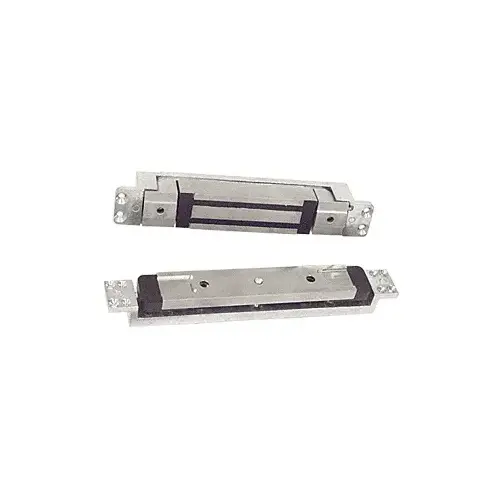

Locknetics GF3000 Electromagnetic Mortise Overhead Mount Shear Lock - 3000 Pound Holding Force
Item #: GF3000 by Locknetics
Brand: Locknetics
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Fully automatic electromagnetic mortise shear lock with 12/24V DC selection
- Holds up to 3000 pounds for secure door locking applications
- Overhead mount design suitable for commercial and residential doors
- Durable construction ensures long-lasting performance and reliability
- Easy installation with standard mortise cutout and mounting hardware
- Smooth operation with strong magnetic shear holding force
- Limited lifetime warranty for peace of mind and product assurance
Depth
1-1/2 in (38 mm)
Height
1-1/2 in (38 mm)
Length
11-9/16 in (294 mm)
Brand
Locknetics
Mounting Type
Overhead Mount - Top Rail
Current Draw
.90A @ 12V DC; .45A @ 24V DC
Series
GF3000 Series
Product Overview
This CRL Mortise Mounted Shear Lock offers the advantage of a totally concealed locking mechanism featuring a patented design offering unique advances. Unique mounting features provide a "floating" action of both the lock assembly and the armature. This design allows the magnet assembly to move towards the armature during the locking process. In this manner, the GF3000 Series is able to overcome gaps of up to 1/4" (6 mm) without current inrush.
Once engaged, the Shear Lock provides 3000 lbs. holding force, without high operating temperatures. The circuitry automatically adjusts input voltage, allowing for operation from 12 to 24 Volt DC power sources. The Shear Lock is ideally suited for Herculite type doors with top or bottom rails, as well as commercial grade hollow metal doors and frames. All models offer a built-in automatic relock feature that can be adjusted from 1 to 30 seconds. Universal hardware is included for installation into flush or recessed depth door edge. The "BRD" model is available for floor mounting applications when no top rail mounting is available.SPECIFICATIONS:
Holding Force: 2700 - 3000 Lbs. (1225 - 1361 kg)
Input Voltage: 12/24 Volts DC - Automatic Selection Requires a Filtered, Regulated Power Supply
Current Draw: 900mA @ 12V DC, 450mA @ 24V DCNOTE: A complete list of accessories, such as Mounting Brackets, Power Supplies, Transformers, and Keypads are available.
Product Warning:
This item requires a filtered, regulated 12 to 24 VDC power supply or filtered unregulated (using/transformer with rectifier) 12 to 16 VDC voltage selection is automatic.
