Electromagnetic Mortised Floor Mount Shear Lock - 3000 Pound Holding Force

Roll over image to zoom in

Locknetics GF3000BRD Electromagnetic Mortised Floor Mount Shear Lock - 3000 Pound Holding Force

Item #: GF3000BRD by Locknetics

See reviews See reviews

In Stock $1,953.15 /each

SAVE UP TO 195.31

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Fully Automatic 12/24V DC Selection
  • 3000 Pounds Shear Holding Force
  • Limited Lifetime Warranty

Cement Case Height

1-3/4 in (45 mm)

Cement Case Length

7-1/2 in (191 mm)

Cement Case Width

2-3/8 in (60 mm)

Brand

Locknetics

Mounting Type

Floor Mount - Bottom Rail

Finish

Red

Current Draw

.90A @ 12V DC; .45A @ 24V DC

Input Voltage

12/24 Volts DC

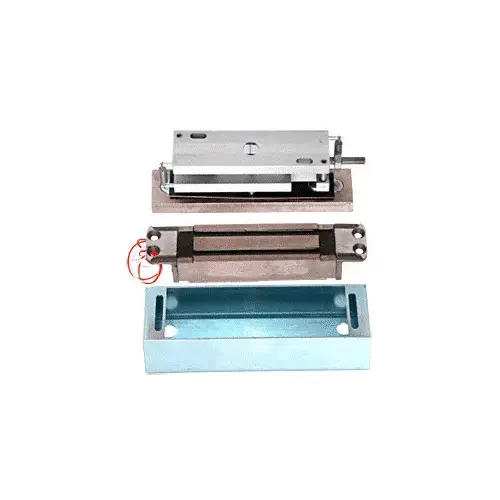

This CRL Mortise Mounted Shear Lock offers the advantage of a totally concealed locking mechanism featuring a patented design offering unique advances. Unique mounting features provide a "floating" action of both the lock assembly and the armature. This design allows the magnet assembly to move towards the armature during the locking process. In this manner, the GF3000 Series is able to overcome gaps of up to 1/4" (6 mm) without current inrush.
Once engaged, the Shear Lock provides 3000 lbs. holding force, without high operating temperatures. The circuitry automatically adjusts input voltage, allowing for operation from 12 to 24 Volt DC power sources. The Shear Lock is ideally suited for Herculite® type doors with top or bottom rails, as well as commercial grade hollow metal doors and frames. All models offer a built-in automatic relock feature that can be adjusted from 1 to 30 seconds. Universal hardware is included for installation into flush or recessed depth door edge. The "BRD" model is available for floor mounting applications when no top rail mounting is available.SPECIFICATIONS:
Holding Force: 2700 - 3000 Lbs.
Input Voltage: 12/24 Volts DC - Automatic Selection; Requires a Filtered; Regulated Power Supply
Current Draw: .90A @ 12V DC; .45A @ 24V DCNOTE: A complete list of accessories, such as Mounting Brackets, Power Supplies, Transformers, and Keypads are available.
Product Warning:
This item requires a filtered, regulated 12 to 24 VDC power supply or filtered unregulated (using/transformer with rectifier) 12 to 16 VDC voltage selection is automatic.

.
