Features
- Style: Transom mount
- Monitors: Depth and Temperature
- Material: Plastic
- Frequency: 83/200kHz
- Transmit Power: 300W (RMS)
- Max. Depth: 1,000'
- Beamwidth: 60 -120 (83kHz), 20 -60 (200kHz)
- Cable Length: 20' cable with blue 7-pin connector
Beam
60x120 Degrees Low-Frequency
Deadrise Angle
0 Degree
Sonar
Depth , Temperature
Transmit Power
300 Watts
Maximum Depth
600 Feet
Type
Transom Mounts
Material
Plastic

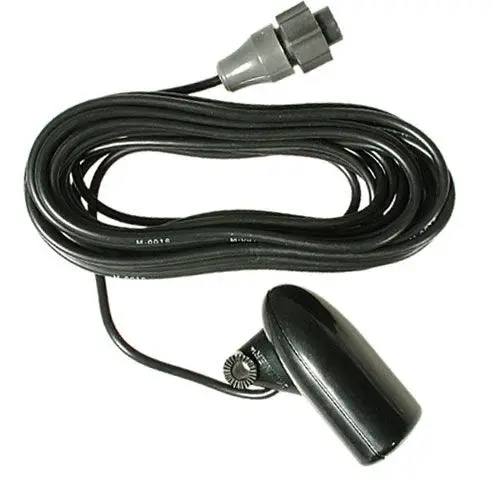

Product Overview
Traditional 83/200kHz transducer for inland freshwater and inshore coastal saltwater fishing. Transom-mount transducer slices through water without sonar-interfering bubbles for exceptional sounding performance and clean sounder returns at speeds up to 61 knots. Excellent for inland freshwater and inshore coastal saltwater fishing. Includes built-in water temperature sensor. With up to 120 degree wider fish detection coverage at 83kHz. Also suitable for shoot-thru sounding (without temperature readings) on fiberglass hulls with proper installation. Compatible with Lowrance, Simrad and B&G units with blue 7-pin connector.
