Features
- Multi-beam sonar: StructureScan 3D is powered by a multi-beam sonar technology that produces revealing images with stunning detail by converting scans of underwater terrain and fish-holding structure into high-resolution, 180-degree, three-dimensional views.
- Easy-to-understand sonar images: View 3D images from any angle with ScanTrack pan-tilt-rotate control using on-screen touch commands and easy-to-use, preset viewing positions.
- Find key fishing areas faster: StructureScan 3D allows anglers to more easily understand where fish and fish-holding structure are located in relation to their boat. By slowly idling over a potential fishing area with the wide, 180 scanning range, anglers can quickly search for key areas and cover such as abrupt depth changes, points, ditches, rockpiles, brushpiles, weedbeds standing timber, w
- Unrivaled sideScan image clarity: To ensure the clearest possible SideScan views, the StructureScan 3D transducer design has been enhanced with an increased number of sensors for greater imaging performance.
- High definition (HD) and super-wide 3D scanning: The contours below the water's surface can be shown to the sides of the boat up to 600' port and starboard with incredibly detailed, high-definition views. StructureScan 3D provides multiple views, including two-dimensional DownScan Imaging and StructureScan HD, and the new, realistic three-dimensional views. Using preset virtual point-of-view an
- Ethernet connectivity: Ethernet ports allow connectivity for up to three networked devices.
- Compatible Displays: Lowrance HDS Gen3, Simrad NSS evo2, NSO evo2, NSS evo3, NSO evo3,
- Frequency: Enhanced 455kHz
- Maximum DownScan Depth: 200'
- Maximum SideScan Range: 600' on each side
- Speed Range: Track bottom: 35MPH; Mark objects: 15MPH; Optimum imaging: 2-8MPH
- Transmit Power: 500W (RMS)
- Voltage: 12V DC
- Amperage: Max: .75A, Typical: .60A, Inrush: 4.7A pk
- Data Interface: Ethernet
- Transducer Cable Length: 20'
- Module Dimensions: 8 1/16"W x 8 1/8"H x 2 1/4"D
- Waterproof Rating: IPX7
- Warranty: Two years
Dimensions
7 1/8" Width x 2 3/16" Height x 8" Length
Warranty
One Year
Maximum Depth
300'
Mount Type
Surface
Sonar
3D Imaging
Specific Transducer
Sold Separately
Product Overview

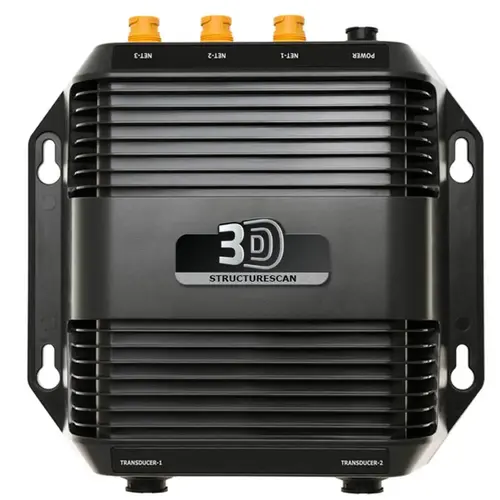

See what lies below your boat in a stunning three-dimensional view. The StructureScan 3D Modular allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180 degree, three-dimensional view beneath your boat.
