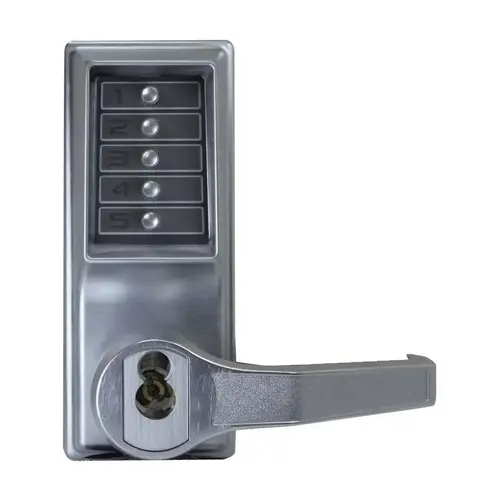

Kaba Access LR1025R-26D-41 Satin Chrome Pushbutton Lever Lock - Combination Entry Function with Key Override - 2-3/4" Backset - 3/4" Throw Latch - Right Hand

Item #: LR1025R-26D-41 by Ilco

Brand: Kaba Access

See reviewsSee reviews
See reviews summary
In Stock

$774.07

823.00 /each
SAVE UP TO 77.41
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available

Finish: Satin Chrome

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
  • Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
  • Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Factory-handed; not field reversible
  • Backset: 2¾" (70 mm), 2⅜" (60 mm)
  • Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: Standard strike plate; ASA strike plate
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

Color

Satin Chrome

Cylinder Type

Sargent LFIC Less Core

Package Qty

1

Color Code

626/US26D

Lock Platform

Cylindrical Lock

Base Material

Brass or Bronze

Fire Rated

3 Hours {A}

Finish

626 - Satin Chrome

Grade

Grade 1

Backset

2-3/4" Backset, 3/4" Throw Latch

Handing

Right Hand

Keyed

Yes

Handle Type

Lever

Door Handing

Field Reversible

Substrate Type

Brass or Bronze

Key Override

R - LFIC, Sargent, Core not included

Lock Type

Cylindrical

Segment

Door Hardware

Product Overview

Cylindrical Lever Lock, Combination Entry, Key Override, 2-3/4" Backset, 3/4" Throw Latch, Sargent LFIC Prep, Less Core, Satin Chrome

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

Eliminates the material and labor expense of battery replacements and has a single access-code.
