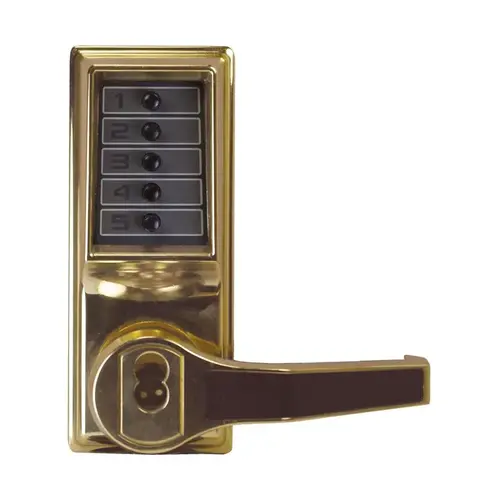

Kaba Access LR1041C-03-41 Simplex LR1041 Pushbutton Cylindrical Lever Lock, Combination Entry/Passage Functions with Key Override Bright Brass
Item #: LR1041C-03-41 by Ilco
Brand: Kaba Access
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Factory-handed; not field reversible
- Backset: 2¾" (70 mm), 2⅜" (60 mm)
- Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
- Minimum Stile Recommended: 5" (127 mm)
- Strike: Standard strike plate; ASA strike plate
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-year warranty
Color
Bright Brass
Cylinder Type
Corbin Russwin 6-Pin LFIC Less Core
Package Qty
1
Color Code
605/US3
Lock Platform
Cylindrical Lock
Base Material
Brass
Finish
605 - Bright Brass
Grade
Grade 1
Handing
Right Hand
Keyed
Yes
Handle Type
Lever
Door Handing
Field Reversible
Substrate Type
Brass or Bronze
Key Override
C - LFIC, Corbin Russwin (6-pin length), Core not included
Lock Type
Cylindrical
Locking Option
2-3/4" Backset, 1/2"Throw Latch - Standard
Segment
Door Hardware
Product Overview
Cylindrical Lever Lock, Combination Entry, Key Override, Passage, 2-3/4" Backset, 1/2" Throw Latch, Corbin Russwin 6-Pin LFIC Prep, Less Core, Bright Brass
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
Eliminates the material and labor expense of battery replacements and has a single access-code.
