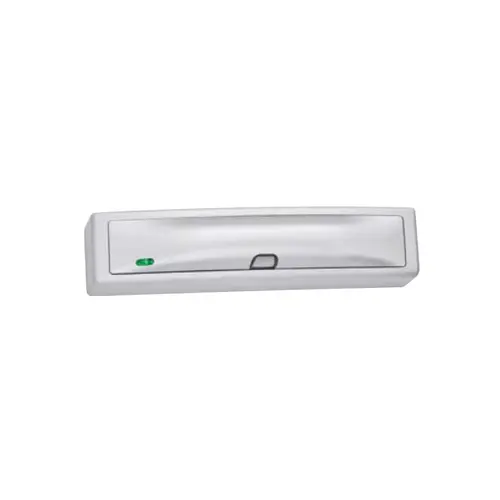

Securitron M680EBDX 628 M680E EcoMag Sustainable Magnalock 1200lbs Holding Force, Satin Aluminum Clear
Item #: M680EBDX 628 by SECURITRON
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Satin Aluminum Clear Anodized
Function
Magnetic Lock
Operating Voltage
12VDC/24VDC
Color Code
628/US28
Switch Type
MBS/DPS
Finish
Satin Aluminum Clear
Finish Description
Satin Aluminum
Product Type
Electromagnetic Lock
Holding Force
1200lb
Product Height
2-9/16 Inch
Product Length
11-1/2 Inch
ADA Compliant
No
Finish Family
Aluminum
Product Depth
2-1/2 Inch
Standards
UL 10C Fire Rated, 1 Hour; CAN/ULC-S104 Fire Door Conformant; UL1034 Burglary-Resistant Listed; UL294 Recognized Component; ANSI/BHMA A156.23, Grade 2; E18501; California State Fire Marshal Listed
For Door Type
Out Swing Doors
Indoor or Outdoor Use
Indoor
Monitoring Option
BondSTAT Monitor and Door Position Switch
Features
Autosensing Dual Voltage with Microprocessor Technology; Strike Plate Mounting Template; Tamper Switch; Size Optimized for Door Closers; LED Indicator; Adjustable Automatic Relock Timer
Voltage
24 VDC
Mounting Type
Bracket Mounted
Grade
ANSI/BHMA Grade 2
Warranty
Lifetime Warranty
Operating Temperature
32 to 110°F
Series
M680E Series
Manufacturer Parent
Assa Abloy
Resistance Properties
Rust Resistant
Preload Capable
Yes
Sub-Series
M680EBDX-628
Fire Rated
Yes
Product Overview
M680E: 1,200lbs holding force bracket mounted, sustainable Magnalock
The same unsurpassed intelligence, style and convenience as the M680 series, but with up to 80% reduction in energy consumption. The M680E is smart, with built-in door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods. The M680EBD offers built-in smart voltage sensing, Securitron’s integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics of the M680E are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template. The optional integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress.
Product Features
Specifications
Certifications
The same unsurpassed intelligence, style and convenience as the M680 series, but with up to 80% reduction in energy consumption. The M680E is smart, with built-in door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods. The M680EBD offers built-in smart voltage sensing, Securitron’s integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics of the M680E are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template. The optional integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress.
Product Features
- Strike plate mounting template provides the easiest install for out-swing doors
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Available integrated BondSTAT Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Adjustable automatic relock timer (0 to 30 seconds)
- Wire chamber anti-tamper switch
- Energy efficient, low power usage
- Size optimized for use with door closers
- MagnaCare Lifetime Replacement No Fault Warranty
Specifications
- Dimensions: 11-1/2"L x 2-9/16"D x 2-1/2"H
- Maglock Average Power Draw: 113mA at 12VDC, 52mA at 24VDC
- Operating Temperature: +32 to +110F, Indoor use only
Certifications
- UL 10C Listed
- CAN/ULC-S104 Fire Door Conformant
- UL 294 Recognized Component
- UL 1034 Burglary-Resistant Listed
- ANSI/BHMA A156.23, Grade 1;E08501
- CSFM - California State Fire Marshal Approved
