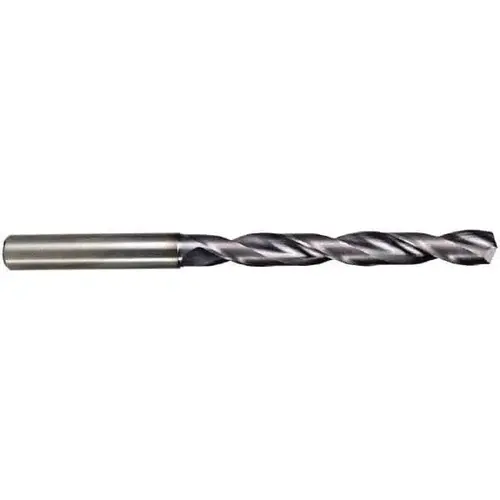

Taper Length Drill Bit: Series 2XDCL, 7.3 mm Dia, 142 degree Point, Solid Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

M.A. Ford. 2XDCL2874A Taper Length Drill Bit: Series 2XDCL, 7.3 mm Dia, 142 degree Point, Solid Carbide TiN

Item #: 2XDCL2874A by M.A. Ford.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$245.70

/each
SAVE UP TO 24.57
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Material Application

Cast Iron

Shank Type

Straight-Cylindrical

Overall Length (mm)

118

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

2XDCL

Spiral Type

Regular

Coating/Finish

TiN

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.2874

Drill Bit Size (mm)

7.30

Drill Point Angle

142 degrees

Flute Length (mm)

70.00

Shank Diameter (mm)

8.00

Shank Length (Decimal Inch)

1.8898

Shank Length (mm)

48.00

UNSPSC Code

23241600

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

+0.000 to -0.015 mm

Maximum Drilling Depth (mm)

56.00

Threaded Shank

No

Drill Point Length (mm)

1.13

Flute Length x Diameter Ratio

7xD

Product Overview
Taper Length Drill Bit: Series 2XDCL, 7.3 mm Dia, 142 degree Point, Solid Carbide Coated, 70 mm Flute Length, 118 mm OAL, Right Hand Cut, Spiral Flute, Straight Shank
