Lock Electric Mortise Lock Dark Oxidized Satin Bronze Oil Rubbed

Roll over image to zoom in

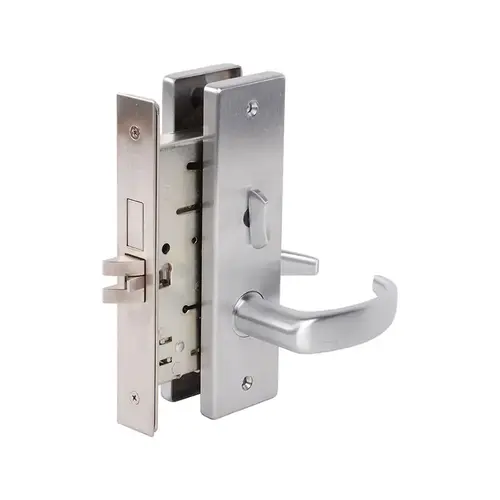

Falcon MA881L QN 613 12VDC Lock Electric Mortise Lock Dark Oxidized Satin Bronze Oil Rubbed

Item #: MA881L QN 613 12VDC by Falcon

See reviewsSee reviews
In Stock

$495.96

/each
SAVE UP TO 49.60

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • Door thickness: Standard accommodates thickness of 1-3/8” to 2-1/2”.
  • Backset: 2-3/4” only.
  • Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
  • Hubs: Hardened steel.
  • Handing: Right hand is standard; left hand optional. Reversible in the field.
  • Cylinders: Solid brass cylinder and plug. 5, 6 or 7-pin are available on standard cylinders. 6 or 7-pin are available on interchangeable core cylinder. Furnished with two nickel silver keys standard
  • Keyways: “G” keyway standard on standard cylinder. “A” keyway standard on I/C cylinder. See price book for optional keyways
  • Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.
  • Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4” projection.
  • Dead Bolt: 1” throw, stainless steel with two 13/16” diameter hardened steel, free-turning, saw-resistant roller.
  • Faceplates: (Armored Front) 1-1/4” x 8” brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
  • Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
  • Electrified Functions: Available in 12 or 24 VDC.
  • ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.
  • UL: 3 hour A label.

Switch Type

None

Base Material

Bronze

Rose/Escutcheon Design

N - Napa

Package Qty

1

Operating Voltage

12VDC

Lever/Knob Design

Q - Quantum

Package Volume

0

Cylinder Type

Less Cylinder

Function

MA881-12-Storeroom Fail Secure EU

Color Code

613/US10B

Color

Dark Oxidized Satin Bronze Oil Rubbed

Grade

Grade 1

Product Overview

Electrified Mortise Lock, 12VDC, Fail Secure, Less Cylinder, Quantum Lever, Napa Escutcheon, Oil Rubbed Bronze

The Falcon MA Series lock delivers high performance at an affordable cost for your office, hospital, education, or other commercial projects. One of Falcon's toughest and most dependable locks, the MA Series, provides security and is built to stand up to constant use without fail. The MA Series also makes retrofit easy with an interchangeable core that can be removed for quick, easy re-keying and is compatible with SFIC products from other manufacturers. Plus they're backed by one of the best names in the business - Allegion.

Provides security and is built to stand up to constant use without fail.
