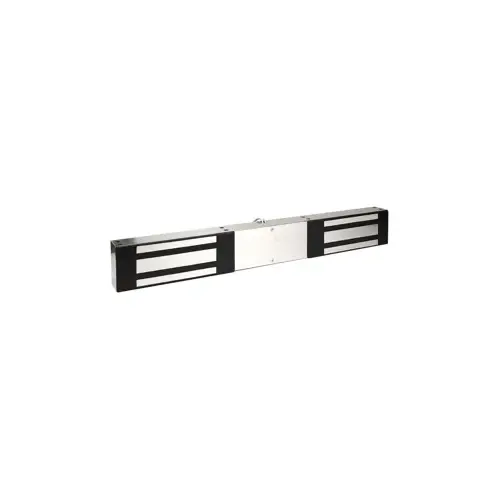

Securitron DM62 Series Double Magnalock Satin Stainless Steel
Item #: DM62 by SECURITRON
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
- World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
- Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
- Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Satin Stainless Steel
Series
Parts/Accessories
UL Listing Type
UL 10C
Package Volume
0
Product Width
1.75"
Burglar Rated
No
Grade
ANSI/BHMA Grade 2
Fire Rated
Yes
Special Marks
Fire rated 3 Hours {A}
Restrictions
None
Product Height
3 Inch
Package Qty
1
ANSI Number
A156.23
Color Code
630/US32D
Origin
USA
BAA Qualified
Yes
Product Length
22 Inch
Base Material
Stainless Steel
Voltage
24 VDC
Finish Description
Satin Stainless Steel
Product Type
Electromagnetic Lock
Alternate Part Number-1
139012
Product Depth
2-3/4 Inch
Strike Size
6" L x 1/2" D x 2-3/4" H
Manufacturer Parent
Assa Abloy
Function
Magnetic Lock
Sub-Series
DM62
ADA Compliant
No
Mounting Type
Surface Mount
Operating Temperature
-40 to 140°F
For Door Type
Double
Preload Capable
No
Standards
UL 10C Listed; CAN4-S104, CAN/ ULC-S533 Listed; ANSI/BHMA A156.23, Grade 2; E08511-1000; CSFM- California State Fire Marshal Approved
Monitoring Option
No Monitoring
Conductor Length
36 Inch
Resistance Properties
Tamp Resistant; Weather Resistant
Features
Automatic Dual Voltage-No Field Adjustment Required; Mounted using Steel Machine Screws into Blind Finishing Nuts; Fully Sealed Electronics; Patented Instant Release Circuit-No Residual Magnetism; Both Locks can be Controlled as One or Individually
Indoor or Outdoor Use
Indoor/Outdoor
Strike Type
Standard Strike
Holding Force
1200lb
Warranty
Lifetime Warranty
Options
Instant Release, Weather proof
Mounting
Surface Mount
Maglock Type
Double Door
Height
4.33
Length
27.95
Width
6.3
Product Overview
The Ultimate Magnalock® Double Magnet for Indoor/Outdoor Higher Security. The versatile DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter and exterior access control - in a compact double magnet. This all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the DM62 will last long after most buildings wear out.
