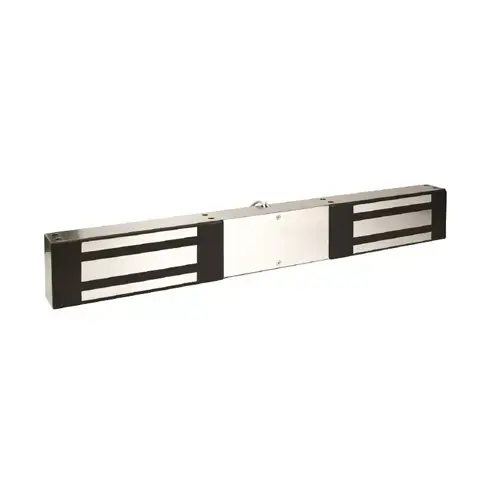

Securitron DM62D Magnalock 62 Double 12 Volt / 24 Volt DC with DPS Satin Stainless Steel Finish
Item #: DM62D by SECURITRON
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Automatic Dual Voltage Uses 12 or 24 Volt Power Supply and Protects Magnalock
- World Class Technical Support Experts Ready to Assist You in Selecting Hardware, Wiring and Troubleshooting Your Opening
- Collapsing Blind Nuts Securely Anchoring Magnalocks to the Frame With 1000 Pounds of Tensile Strength
- Excellent Product Quality, Magnalocks are Manufactured in an ISO9001 Certified Factory in Phoenix, AZ
- MagnaCare, The Best Warranty in the Industry, Lifetime Replacement, No Fault, No Questions Asked
Finish
Satin Stainless Steel
Series
M62 Series
UL Listing Type
UL 10C
Package Volume
0
Product Width
1.75"
Burglar Rated
No
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Restrictions
None
Product Height
3"
Package Qty
1
ANSI Number
A156.23
Color Code
630/US32D
Origin
USA
BAA Qualified
Yes
Product Length
22"
Base Material
Stainless Steel
Product Type
Magnetic Locks
Battery Voltage
12-24 V
Rough Opening
1.65 in.
Power Source
Other
Package Quantity
1
Handle Type
No Handle
UL Listed
No
Keying
Other
Access Type
Other
ADA Compliant
No
Commercial/Residential
Commercial
Door Handing
Non-Handed, Reversible
Backset Size
Latch Not Included
Bluetooth Enabled
False
Security Grade
ANSI Grade 2
Lock Type
Electromagnetic Lock
UNSPSC
46171503
MADE IN THE USA
No
Assembled Product Depth
2.75 in.
Assembled Product Height
3 in.
Assembled Product Width
1.75 in.
Smart Connectivity
True
GSA Approved
No
Electric Strike
True
AbilityOne
No
TAA/BAA Compliant
Yes
Lockset Function
Other
Timed Entry Allowed
False
Deadbolt Cylinder Style
Double
Product Overview
Maglock, Double Door Application, 1200 lb, DPS, 12/24VDC, Satin Stainless Steel
The versatile DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter and exterior access control, in a compact double magnet. This all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the DM62 will last long after most buildings wear out. Ultra-secure collapsing blind nuts mount to door frame for strength and reliability. Fully sealed for weatherproof operations. 3' [1 m] of jacketed, stranded conductor cable for each lock. Automatic dual-voltage no field adjustment required. Instant release circuit no residual magnetism. Efficient, low power usage. Rust resistant - all ferrous metal surfaces plated for durability. 1,200 lbs [544kg] per lock. Magnalock: 22"L x 1-3/4"D x 3"H Strike: 6"L x 1/2"D x 2-3/4"H each. 250 mA at 12 VDC/lock 150 mA at 24 VDC/lock. -40 to +140F [-40 to +60C] Indoor or Outdoor use.
