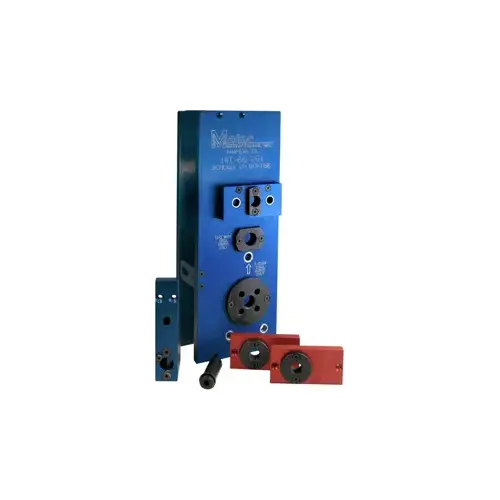

Major Mfg HIT-66-281 Template for Schlage CO Mortise Lock
Item #: HIT-66-281 by MAJOR MFG.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
147816
Type
Template for Schlage CO
Installation Tools
Clamp System
Product Overview
Major Manufacturing Template for Schlage CO Mortise Lock
HIT-66-281
Our new HIT-66-281 template is designed to quickly and accurately install or retrofit the Schlage CO series mortise locks. All required holes are lined with hardened drill bushings, the larger holes for wire runs will also accept hole saws. The angled hole for the DPS is also templated and is easy to drill. Plates are machined from aluminum and hard anodized.
This template requires the HIT-66 clamp system that includes the HIT-4509 mortise alignment plate (clamp system sold separately). The template set includes both inside and outside template guides. and DPS wire run guide. All drill guide holes are identified for trouble free drilling. Drill guides are supplied that will work with both wood or steel doors.
