LXT technology delivers 380 feet of cutting performance in red oak using a 1/4" (6mm) straight bit at a 5/32" (4mm) depth with a 5.0Ah battery
The electronically-controlled BL Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
Electronic speed control maintains constant speed under load
On/Off button with separate lock button helps prevent accidental start-up of the tool for user and workpiece protection
Soft start feature for smoother start-ups and better accuracy

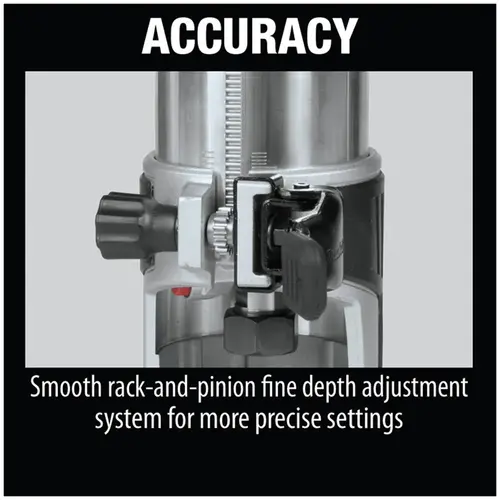

Smooth rack-and-pinion fine depth adjustment system for more precise settings
Slim and ergonomically designed body with rubberized grip for increased comfort
Aluminum housing and base for increased durability and accuracy
Dual L.E.D. lights illuminate the work area
Quick release cam lock system for convenient depth adjustments and base removal/installation
High visibility base design for improved handling and performance
Accepts industry standard template guides
Comes with a plunge base for added versatility (additional bases and attachments sold separately)
Plunge capacity of 0 - 1-3/8" with included plunge base attached (plunge capacity of 0-1-9/16" with trimmer base sold separately)
Base can be removed quickly to install other bases
Non-marring high-durability base insert for increased work piece protection
Shaft lock for quick and easy bit changes
Easy-to-read depth scales
Uses 1/4" or 3/8" shank routers bits
Compact and ergonomic design at 8-7/8" tall; weighs only 4.6 lbs. with battery for reduced operator fatigue
Connects to Makita vacuum cleaners with optional dust nozzle for a cleaner work environment
Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating
Rapid Optimum Charger and Dual Port Rapid Optimum Chargers communicate with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
Only use genuine Makita batteries and chargers
3-year limited warranty
Includes: Tool, 18V LXT Brushless Compact Router (XTR01Z), (2) 18V LXT Lithium-Ion 5.0Ah Battery (BL1850B), 18V LXT Lithium-Ion Rapid Optimum Charger (DC18RC), MAKPAC Interlocking Case X-Large (197213-3), Trimmer Base (196613-4), Plunge Base (196094-2), Straight Guide (122965-7), Spanner Wrench (781011-1), Spanner Wrench (781039-9), 1/4" Collet (763637-1), 3/8" Collet (763619-3), Template Guide (343577-5), Template Guide 5/8" (344364-5)
Packing & Sold In:
Each
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Voltage
18v
Overall Length
5-1/4"
Collet
1/4", 3/8"
Power
Cordless
Weight
4.6 lb
Variable Speed
Yes
Brushless
Yes
Charger Included
1
LED Light
Yes
Plunge Capacity
1-9/16"
Battery Included
2
Product Type
Palm Router Kit
Uses Battery System
18V LXT
Constant Speed Control
Yes
No Load Speed (RPM)
10,000 - 30,000
Powered By
Cordless
Collet Size
1/4 in
Maximum Speed (rpm)
30000 rpm
Motor Type
Brushless Motor
Battery Technology
18V LXT® Lithium-Ion
LED Work Light
Yes
Amp Hour
5.0 Ah
With Soft Start
Yes
Number of rechargeable batteries/batteries
1
Product Overview
18V LXT
Makita-built brushless motor delivers faster and more accurate cuts in a variety of materialsLXT technology delivers 380 feet of cutting performance in red oak using a 1/4" (6mm) straight bit at a 5/32" (4mm) depth with a 5.0Ah battery
The electronically-controlled BL Brushless Motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable speed control dial (10,000 - 30,000 RPM) to match the speed to the application
Electronic speed control maintains constant speed under load
On/Off button with separate lock button helps prevent accidental start-up of the tool for user and workpiece protection
Soft start feature for smoother start-ups and better accuracy
Smooth rack-and-pinion fine depth adjustment system for more precise settings
Slim and ergonomically designed body with rubberized grip for increased comfort
Aluminum housing and base for increased durability and accuracy
Dual L.E.D. lights illuminate the work area
Quick release cam lock system for convenient depth adjustments and base removal/installation
High visibility base design for improved handling and performance
Accepts industry standard template guides
Comes with a plunge base for added versatility (additional bases and attachments sold separately)
Plunge capacity of 0 - 1-3/8" with included plunge base attached (plunge capacity of 0-1-9/16" with trimmer base sold separately)
Base can be removed quickly to install other bases
Non-marring high-durability base insert for increased work piece protection
Shaft lock for quick and easy bit changes
Easy-to-read depth scales
Uses 1/4" or 3/8" shank routers bits
Compact and ergonomic design at 8-7/8" tall; weighs only 4.6 lbs. with battery for reduced operator fatigue
Connects to Makita vacuum cleaners with optional dust nozzle for a cleaner work environment
Equipped with Star Protection Computer Controls to protect against overloading, over-discharging and over-heating
Rapid Optimum Charger and Dual Port Rapid Optimum Chargers communicate with the battery's built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
Only use genuine Makita batteries and chargers
3-year limited warranty
Includes: Tool, 18V LXT Brushless Compact Router (XTR01Z), (2) 18V LXT Lithium-Ion 5.0Ah Battery (BL1850B), 18V LXT Lithium-Ion Rapid Optimum Charger (DC18RC), MAKPAC Interlocking Case X-Large (197213-3), Trimmer Base (196613-4), Plunge Base (196094-2), Straight Guide (122965-7), Spanner Wrench (781011-1), Spanner Wrench (781039-9), 1/4" Collet (763637-1), 3/8" Collet (763619-3), Template Guide (343577-5), Template Guide 5/8" (344364-5)
Packing & Sold In:
Each
