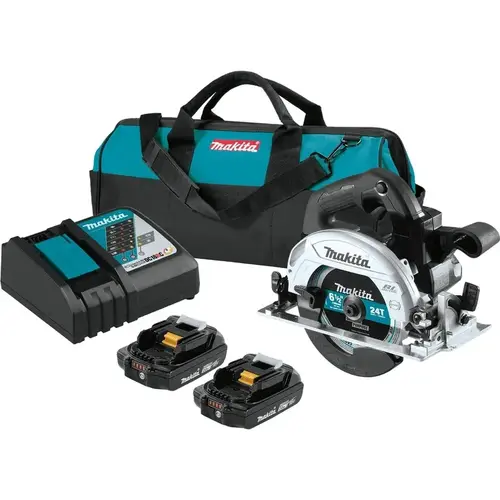

Makita XSH04RB Circular Saw Kit, Battery Included, 18 V, 2 Ah, 6-1/2 in Dia Blade, 0 to 50 deg Bevel
Item #: XSH04RB by MAKITA U.S.A. INC
UPC #: 088381863490
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Compact and ergonomic blade-right design at only 10-5/8 in long
- Weighs only 6.4 lb with battery for operator comfort
- Powerful Makita built electronically controlled BL™ Motor delivers 5000 rpm for faster cutting and ripping
- The BL™ brushless motor eliminates carbon brushes, enabling the BL™ motor to run cooler and more efficiently for longer life
- Large cutting capacity (2-1/4 in at 90 deg) and bevel capacity (0 to 50 deg)
- LXT® technology delivers up to 174 crosscuts per charge in 2x10 SPF lumber using one 5 Ah battery
- Automatic speed change™ technology adjusts cutting speed and torque during cut for optimum performance
- Aluminum base and magnesium blade cover provide a lightweight, durable design
- Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions
- Built-in dust blower cleans the line of cut for operator accuracy
Diameter
6-1/2"
Volts
18 V
Arbor Size
5/8"
Certifications
UL Listed
Depth Adjustment
Yes
Number of Batteries Included
2
Bevel Capacity
0 to 50 deg
Blade Change
Keyed
Blade Location
Right
Brushed or Brushless
Brushless
Corded or Cordless
Cordless
Defective Code
A
Each Weight
15.460 LB
Electric Brake
Yes
Hazardous Material
Yes
Kit or Tool Only
Kit (Battery & Charger)
Laser Guide
No
Maximum Cutting Depth at 45 Degrees
1-5/8"
Maximum Cutting Depth at 90 Degrees
2-1/4"
Maximum Speed
5000 rpm
Returnable
Yes
Spindle Lock
Yes
Tool Weight
6.4 lb
Velocity
X
Product Type
Compact Circular Saw
Battery Amp Hours
2 Ah
Blade Diameter
6-1/2"
Warranty
3 Years
Cutting Capacity
1-5/8 to 2-1/4"
Handle Type
Rubberized Soft-Grip
Cutting Angle
45 to 90 deg
Nomenclature
XSH04RB SAW CIR KT SB-CMPT 18V
Speed Rating
5000 rpm
Tool Only/Battery Included
Battery Included
Battery Type
Lithium-Ion
Product Overview
SAW CIRC KIT W/6-1/2 BLADE 18V
Specifications:
Specifications:
Warranty: 3 Years
Includes: (1) XSH04ZB 18 V LXT Sub-Compact Brushless 6-1/2 in Circular Saw (2) BL1820B 18 V LXT Lithium-Ion Compact 2 Ah Battery (1) DC18RC 18 V LXT Lithium-Ion Rapid Optimum Charger
The sub-compact 6-1/2 in circular saw has a compact and ergonomic design at only 10-5/8 in and 6.4 lb (with 18 V LXT compact 2 Ah battery). The compact size combined with the Makita-built brushless motor delivers up to 5000 RPM and a superior power-to-weight ratio. The saw is equipped with Makita's automatic speed change technology, which adjusts cutting speed and torque under load for optimum cutting performance. The efficient brushless motor is electronically controlled to provide up to 50% longer run time than non-brushless motors and in run-time testing the XSH04 made up to 174 cross-cuts per charge in 2x10 SPF lumber using one 5 Ah battery. For extended run time users can load up a high amp-hour 18 V LXT battery (all sold separately) including 3 Ah (BL1830B), 4 Ah (BL1840B), 5 Ah (BL1850B) or 6 Ah (BL1860B). Added convenience features include dual LED lights, electric brake, built-in tether notch (tether sold separately) and Extreme Protection Technology (XPT) for improved dust and water resistance in harsh job site conditions. For improved dust extraction, the rear dust port easily connects to a vacuum system (dust extraction accessories sold separately). It's part of Makita's expanding 18 V LXT system, the world's largest cordless tool system powered by 18 V lithium-ion batteries. Makita 18 V LXT batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls. star protection is communication technology that allows the star protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18 V LXT and compact lithium-ion batteries with the star symbol on the battery indicating star protection inside.
