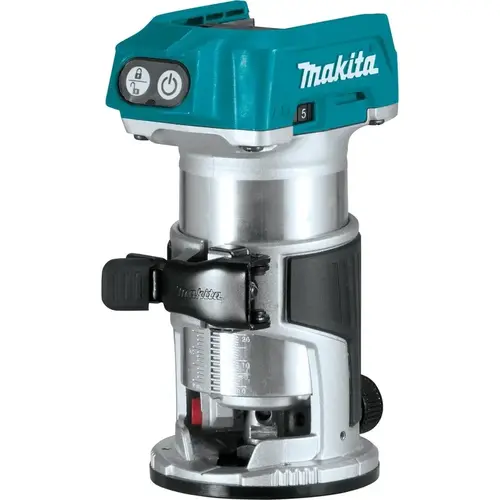

Makita XTR01Z Compact Router, 18 V, 10,000 to 30,000 rpm Spindle
Item #: XTR01Z by Makita
UPC #: 088381844420
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- LXT® technology delivers 380 ft of cutting performance in red oak using a 1/4 in (6 mm) straight bit at a 5/32 in (4 mm) depth with a 5 Ah battery
- Makita-built brushless motor delivers faster and more accurate cuts in a variety of materials
- The electronically-controlled BL™ motor efficiently uses energy to match torque and rpm to the changing demands of the application
- On/off button with separate lock button helps prevent accidental start-up of the tool for user and workpiece protection
- Slim and ergonomically designed body with rubberized grip for increased comfort
- Aluminum housing and base for increased durability and accuracy
- High-visibility base design for improved handling and performance
- Accepts industry standard template guides
- Plunge capacity of 0 to 1-3/8 in with plunge base attached and 0 to 1-9/16 in with trimmer base attached
- Non-marring high-durability base insert for increased work piece protection
Dimensions
5-1/4 in L
Warranty
3 Year Limited
Spindle Speed
10000 to 30000 rpm
Nomenclature
XTR01Z ROUTER COMPACT 18V
Height
5.80
Length
6.20
Width
8.50
Hazardous Material
No
ECCN
EAR99
Country Origin Code
CN
Overall Length
5-1/4"
Volts
18V
Certifications
UL Listed
Depth Adjustment
Yes
Case Included
No
Collet Size
1/4"
Variable Speed
Yes
Built-In LED Light
Yes
Corded or Cordless
Cordless
Defective Code
A
Each Weight
5.300 LB
Maximum Speed
30000 rpm
Multiple Base
No
Plunge Capacity
1-9/16"
Returnable
Yes
Router Base Type
Fixed Base
Sub Brand
LXT
Tool Weight
4.6 lb
Velocity
X
Product Type
Compact Router
Voltage
18
Motor Type
Brushless
Length (in)
5.25
Weight (lb)
4.6
Charger Included
No
Battery Type
Lithium-Ion
Battery Platform
Makita 18V LXT
Router Type
Fixed Base
Vendor Drop Ship
N
Powered By
Cordless
Maximum Speed (rpm)
30000 rpm
Battery Technology
18V LXT® Lithium-Ion
LED Work Light
Yes
Battery Included
No
With Soft Start
Yes
Product Overview
ROUTER COMPACT 18V
Specifications:
Specifications:
Warranty: 3 Year Limited
Dimensions: 5-1/4 in L
Includes: (1) 763637-1 1/4 in Collet (1) 763619-3 3/8 in Collet (1) 781011-1 Spanner Wrench (1) 781039-9 Spanner Wrench (1) 122965-7 Straight Guide (1) 343577-5 Template Guide
Corded power meets cordless convenience with the XTR01Z 18 V LXT brushless compact router. The 18 V LXT router has an efficient Makita BL brushless motor for up to 50% longer run time, increased power and speed and longer tool life. It is compatible with Makita 18 V LXT Lithium-Ion batteries. The XTR01Z is engineered for a full range of cabinetry and wood working applications. It has a variable speed control dial (10,000 to 30,000) rpm) to match the speed to the application, with electronic speed control to maintain constant speed under load and soft start feature for smoother start-ups and better accuracy. Convenience features include the smooth rack-and-pinion fine depth adjustment system for more precise settings, dual LED lights to illuminate the work surface and a quick release cam lock system for convenient depth adjustments and base removal/installation. Additional bases and attachments are available. For users of corded Makita compact routers (models RT0700C, RT0701C), the bases used with these corded routers are fully compatible with the XTR01Z. In addition, the XTR01Z easily connects to Makita vacuum cleaners with the optional dust nozzle for improved dust extraction. It's part of Makita's expanding 18 V Lithium-Ion system, the world's largest cordless tool system powered by 18 V Lithium-Ion slide-style batteries. Makita 18 V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger. For improved tool performance and extended battery life, Makita created Star Protection Computer Controls.
