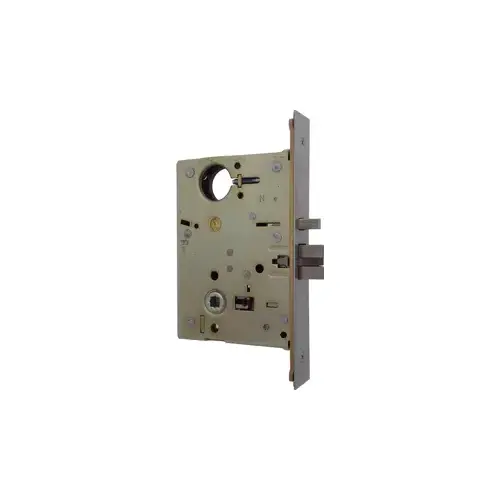

Marks 5-EW-32D-B4-S6 Grade 1 Storeroom Function Mortise Lock Body, Steel Hub Material, 2-3/4" Backset, 4-7/8" Strike Size, Satin Stainless Steel Finish
Item #: 5-EW-32D-B4-S6 by Marks Hardware
Brand: Marks
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed with steel hub material and lever support springs with 5/16" hubs for consistent operation in commercial doors.
- Features a 2-3/4" backset and a 4-7/8" strike size, designed for standard mortise lock door preparations.
- Storeroom function keeps the outside lever rigid, with the latchbolt retracted by key outside or lever inside.
- Includes a 3/4" latch throw and a 1" or 3/4" latch bolt throw, suitable for various security and architectural requirements.
- Designed for doors with a maximum thickness of 1-3/4" and is field reversible to accommodate different handing needs.
- Meets bhma grade 1 standards and is ul/culus listed, ensuring compliance for commercial and storefront security applications.
- Finished in satin stainless steel, this mortise lock body requires a single cylinder and a straight/standard cam for installation.
Strike Size
4-7/8 Inch
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Function Description
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
ANSI Function
F07
Case Dimensions
0.90" Thick
Front Size
1-1/4" x 8"
Hub Material
Steel
Function Family
Storeroom
Standards
BHMA Certified; UL; cULus Listed
Features
Lever Support Springs With 5/16" Hubs
Color Code
630/US32D
Backset
2-3/4 Inch
Cylinder Type Used
Single Cylinder
Manufacturer Parent
Napco Security Technologies
Latch Throw
3/4 Inch
Sub-Series
5-EW-32D-B4-S6
Product Type
Cylindrical Lock
Finish Family
Stainless Steel
Grade
Grade 1
Handing
Field Reversible
Function
Storeroom
Cylinder Included
No
Cylinder Type
Mortise
Alternate Part Number-1
146148
Finish code
US32D
Door Bore Size
Mortise Prep
Lock Category
Mortise Lock
Latch Bolt Throw
1", 3/4"
Door Thickness Max
1-3/4"
Height
1.57
Length
8.66
Width
5.12
Product Overview
The grade 1 storeroom function mortise lock body only is a security component designed for commercial door applications. this lock body features a storeroom function where the outside lever remains rigid at all times, and the latchbolt is retracted by a key from the outside or by rotating the inside lever. the inside lever is always free for egress. it is constructed with a steel hub material and includes lever support springs with 5/16" hubs. the lock body is compatible with a 2-3/4" backset and requires a 4-7/8" strike size. it features a 3/4" latch throw and a 1" or 3/4" latch bolt throw. the front size measures 1-1/4" x 8", and the case thickness is 0.90". this unit is field reversible for handing and is designed for doors with a maximum thickness of 1-3/4". it is bhma certified and ul/culus listed. this mortise lock body requires a single cylinder (not included) and a straight/standard cam. the finish is satin stainless steel.
