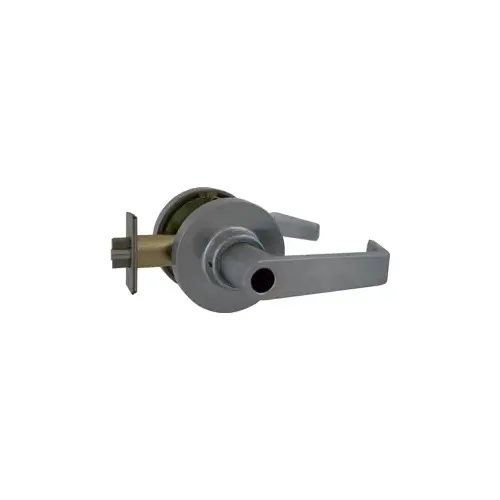

Marks 195DB/26D-G3 Classroom Intruder Lever Lockset, G3-Less Conventional Cylinder, 2-3/4" Backset, ANSI Strike, Grade 1, Satin Chrome US26D/626
Item #: 195DB/26D-G3 by Marks Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
148709
Grade
Grade 1
Backset
2-3/4"
Handing
Field Reversible
Function
Classroom Intruder
Cylinder Included
No
Cylinder Type
6-pin Cylinder
Lever Style
Angled Return Lever
Strike Size
4-7/8" x 1-1/4"
Latch Bolt Type
Deadlatch
Knob/Lever Design
195
Rose/Escutcheon Size
2-9/16"
Latch Bolt Faceplate Size
2-1/4" x 1-1/8"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-5/8"
Latch Bolt Face Type
Square Corner
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
1-7/8"
Knob/Lever Style
Lever
Height
4
Length
8.25
Width
7
Warranty
Lifetime mechanical
Color Code
626/US26D
Keyway
Less cylinder
Handle Type
Lever
Rose Diameter
3-7/16 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Latch Throw
9/16 Inch
Finish Description
Satin Chrome
ANSI Function
F110
Latch Number
1834
Latch Type
Deadlocking
Strike Number
1135
Strike Type
ASA Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; UL and CUL Listed
Cylinder Type Used
Conventional
Function Description
Either lever operates latchbolt (except when outside lever is locked by key from either side). Outside lever remains locked upon egress Inside lever always active.
Front Size
1-1/8" x 2-1/4"
Function Family
Classroom Security/Intruder
Strike Lip
1-1/4 Inch
Trim Material
Solid Cast Zamac (Lever)
Features
Thru-Bolted Spring Loaded Rose
Product Type
Cylindrical Lock
Series
195 Series
Manufacturer Parent
Napco Security Technologies
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
Marks-195DB-G3
Product Overview
Deadlocking latch by lever either side, except when outside locked by key inside. Key outside locks or unlocks outside. Inside always open.
