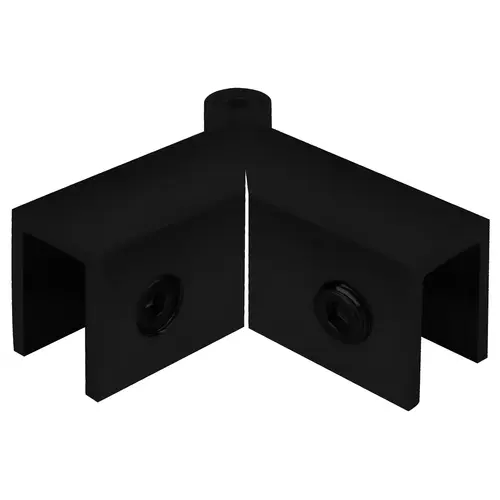

CRL S0GC91MBL Matte Black Adjustable "Sleeve Over" Glass Clamp
Item #: S0GC91MBL by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 5/16" to 1/2" (8 to 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Adjustable from 90 to 180 Degrees
- Solid Brass
- Assists with Shear Forces
- Holds Glass Panels in Position While Sealant Cures
Finish
Matte Black
Type
90 Degree W/Adjustable
Mounting Type
Glass To Glass
Material
Brass
Glazing Thickness
5/16 To 1/2
Adjustable
Yes
Finish/Color
Matte Black
Mounting Style
Glass To Glass
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps tighten using nylon tipped Allen screws).
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels.
Product Warning:
These Clamps are not designed to take the place of Headers or a Support Bar.
.
