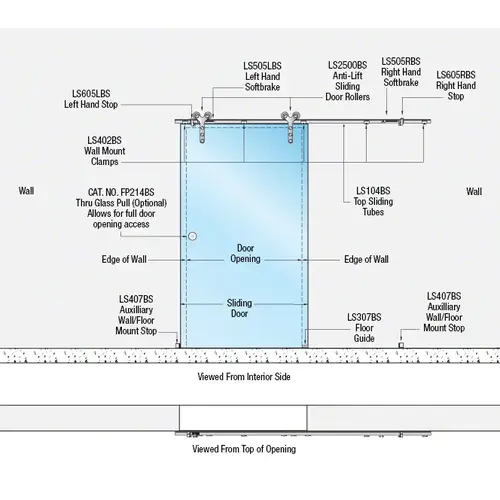

The CRL Double Roller Laguna Series Wall Mount Single Slider with Softbrake Kit contains all the components you will need (except the tempered glass) to complete a single door installation. The Softbrake braking system helps to control the last 2-1/4" (57 mm) of travel. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL LSWM27MBL Matte Black Double Roller Laguna Series Wall Mount Single Slider with Softbrake Kit
Item #: LSWM27MBL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- This Kit is Intended for Wall Mounting
- Softbrake Braking System Controls Door Closing
- Improved Anti-Lift Double Roller Design
- Assembly Contains All Necessary Hardware to Complete the Installation with 3/8" or 1/2" (10 or 12 mm) Tempered Glass
- Alloy 316 Stainless Steel Construction
Finish
Matte Black
Mounting Type
Wall Mount
Material
Stainless Steel (Alloy 316)
Maximum Door Height
98-7/16
Door Configuration
Double Door
Track Length
104
Glazing Thickness
1/2 , 3/8
Self-Closing
Yes
Glazing Type
Tempered Insulated
Finish/Color
Matte Black
Anti-Lift
Yes
Minimum Door Width
37-13/16"
Maximum Panel Weight
100 Lbs.
Track Diameter
1-1/4"
Door Attachment
Flush, Surface
Minimum Door Width
37-13/16 in. (960 mm)
Maximum Panel Weight
220 lbs. (100 kg)
Track Diameter
1-1/4 in. (32 mm)
Product Overview
The CRL Double Roller Laguna Series Wall Mount Single Slider with Softbrake Kit contains all the components you will need (except the tempered glass) to complete a single door installation. The Softbrake braking system helps to control the last 2-1/4" (57 mm) of travel. This model is used in applications where you are attaching a single sliding door to the inside face of a sufficiently reinforced wall.
The Anti-Lift Sliding Door Top Rollers can be attached to the glass with either Surface Mount or Flush Mount Fittings (both are supplied). The Rollers have a 1/8" (3 mm) up or down vertical adjustment to aid in door alignment. This system should only be used with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass cannot be used.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
