These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) square with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated with 316 grade stainless steel in brushed or polished finishes.
SPECIFICATIONS:
For use with 1/2" 27/32" (12 21.52 mm) Tempered Monolithic or Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: One 3/4" (19 mm) Diameter Hole Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available.
Product Warning:
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

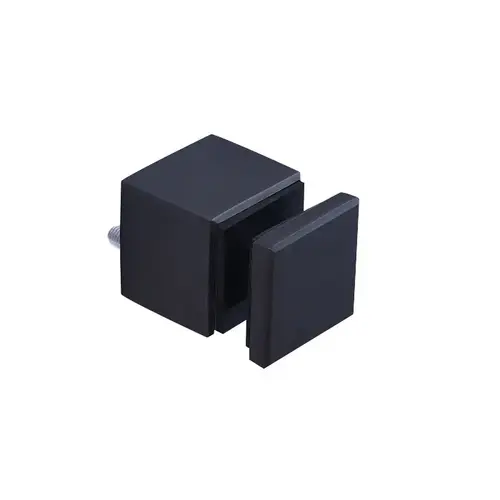

CRL SS0B2134MBL Matte Black Glass Rail Square Standoff Base and Cap - 1-3/4" Projection
Item #: SS0B2134MBL by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Use With 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- Compact Design with Base, Cap, and Mounting Stud for Mounting to Steel, Concrete, or Wood Substrate
- High Grade 316 Stainless Steel
Glass Fabrication
One 3/4" (19 mm) Hole Per Fitting
Finish
Matte Black
Length
1-3/4" (44 mm)
Width
2" (51 mm)
Type
Standard
Material
Stainless Steel
Cap Height
2
Finish/Color
Matte Black
Product Overview
These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) square with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated with 316 grade stainless steel in brushed or polished finishes.
SPECIFICATIONS:
For use with 1/2" 27/32" (12 21.52 mm) Tempered Monolithic or Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: One 3/4" (19 mm) Diameter Hole Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available.
Product Warning:
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
