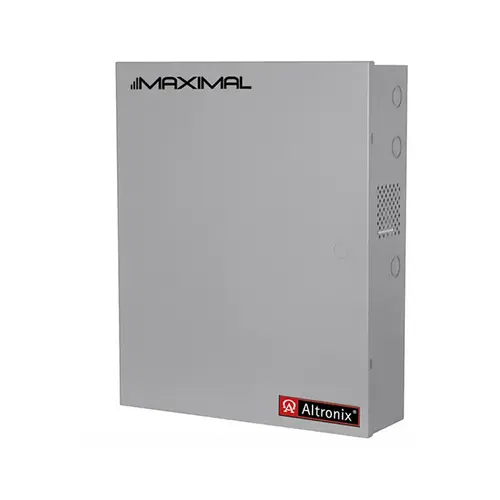

Altronix MAXIMAL11 Access Power Controller, 115VAC 60Hz at 7A Input, Two AL400ULXB, 16 Fuse Protected Outputs 12/24VDC at 3.5A Max

Access Power Controller, 115VAC 60Hz at 7A Input, Two AL400ULXB, 16 Fuse Protected Outputs 12/24VDC at 3.5A Max

Maximal11 distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
