Access Power Controller, 115VAC 60Hz at 7A Input, Two AL400ULXB, 16 PTC Protected Outputs 12/24VDC at 3.5A Max

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

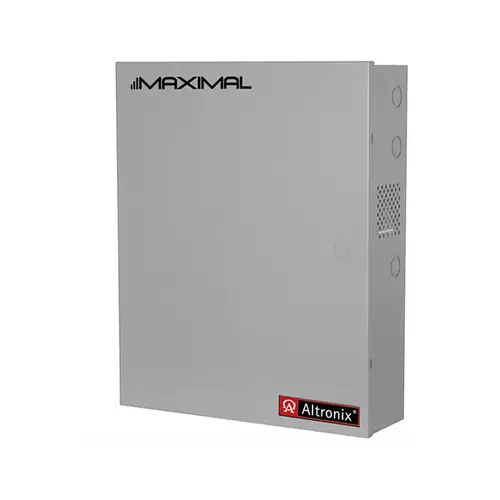

Altronix MAXIMAL11D Access Power Controller, 115VAC 60Hz at 7A Input, Two AL400ULXB, 16 PTC Protected Outputs 12/24VDC at 3.5A Max

Item #: MAXIMAL11D by Altronix

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Output Volts

12/24 VDC

Type

Wire-In Transformer

Output Amps

3.5 AMPS

Product Overview

Access Power Controller, 115VAC 60Hz at 7A Input, Two AL400ULXB, 16 PTC Protected Outputs 12/24VDC at 3.5A Max

Maximal11D distributes and switches power to access control systems and accessories. It converts a 115VAC 60Hz input into sixteen (16) independently controlled 12VDC and/or 24VDC PTC protected outputs. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) outputs.

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

  • General Use
  • CCTV
  • Fire Alarm
  • POIP
