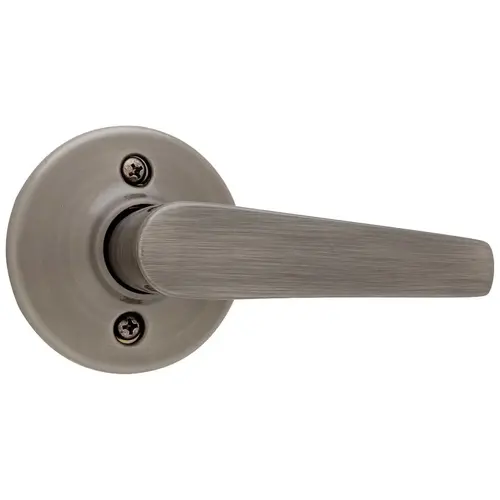

Kwikset 488DL-15AClick To Copy Delta Half Dummy Lever, Satin Nickel Blackened

Delta LeverFeaturing SmartKey

A clean, streamlined design, Delta fits a whole range of decorating styles beautifully, from traditional to contemporary.

Features:

• Featuring SmartKey Security™

• ANSI/BHMA Grade 3 Certified Security

• ADA Compliant

Specifications: Door Prep:

• Cross Bore 2-1/8"
• Edge bore 1"

Backset:

• Adjustable 2-3/8" or 2-3/4"
• UL functions 2-3/4" standard or
• 2-3/8" optional

Door Thickness:

• 1-3/8" - 1-3/4" Doors standard.

Cylinder:

• SmartKey Security™ or Traditional 5-pin Pin & Tumbler

Faceplates:

• 1" x 2-1/4" Specify round corner or square corner.
• Also available as drive-in latch.

Strikes:

• 2-1/4" Full lip standard.
• Specify round corner, square corner.
• Other options available.

Bolt:

• 1/2" Throw

ANSI/BHMA:

• A156.2 Grade 3
• (all functions except 488)

ADA:

• 200 function satisfies section 4.13.9 ADA requirements.

UL:

• Meets 3-hour fire rating for all UL specific functions.

Functions: Passage/Hall/Closet:

• Both levers always free

Privacy/Bed/Bath:

• Both levers locked or unlocked by turnbutton inside.
• Outside lever unlocked by emergency key

Keyed Entry Lever:

• Both sides locked or unlocked by key outside or turnbutton inside

Free Interior:

• Outside locked or unlocked by key outside or turn button inside. Inside always free.

Storeroom/Vestibule:

• Outside unlocked only while key is turned. Inside always free

Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation

Finishes:

• Polished Brass - 3

• Antique Brass - 5

• Venetian Bronze - 11P

• Satin Nickel - 15

• Antique Nickel - 15A

• Polished Chrome - 26

• Satin Chrome - 26D
