MAXWELL MARINE RC121012V Low Profile Windlass, RC12-10, 12V, 3/8" Chain, 3/4" Rope

Item #: RC121012V by MAXWELL MARINE

Brand: MAXWELL MARINE

See reviewsSee reviews
See reviews summary
In Stock

$5,836.16

/each
SAVE UP TO 583.62
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Diameter

3/8" Chain , 3/4" Line

Material

Stainless Steel

Dimensions

8 1/8" Width x 5 1/8" Height x 11 5/8" Length

Style

Vertical

Type

Rope and Chain Rode

Amperage

90 Amps

Maximum Pull

2500 Pounds

Anchoring Speed

65' per Minute

Maximum Boat Length

55 Feet

Minimum Boat Length

35 feet

Retrieval Speed

79' per Minute at 800 Pounds

Product Overview

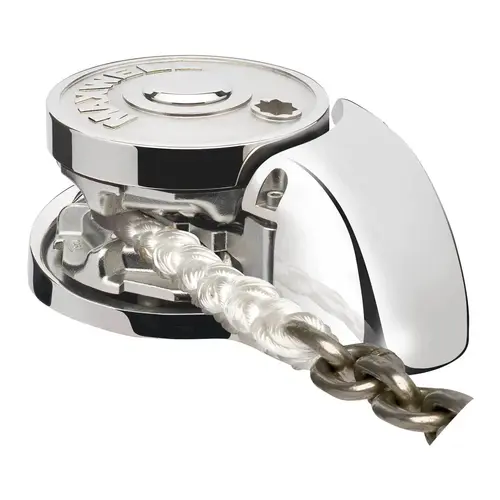

The Maxwell Marine RC12-10 windlass (MPN RC121012V) is a low-profile, vertical anchoring system constructed from marine-grade 316 stainless steel. Designed for boats 35 to 55 feet, it features a patented Maxwell Wave Design™ chainwheel that accommodates 3" (10mm) short link marine chain (HT or BBB) and 3/4" (16-20mm) three-strand or 8-plait rope. The 12V, 1200W motor allows for 10 motor orientation positions, and its black hard-anodized gearbox has a 75:1 ratio. It provides a maximum pull of 2500 lbs (1134 kg) and includes a large through-deck hawse pipe for smooth rode handling. A double cone-type brake/clutch enables "Free Fall" anchoring, while the Active Latch Ratchet System assists in emergency manual retrieval. It comes with a dual-direction solenoid, breaker panel, up/down panel switch, and emergency handle.
