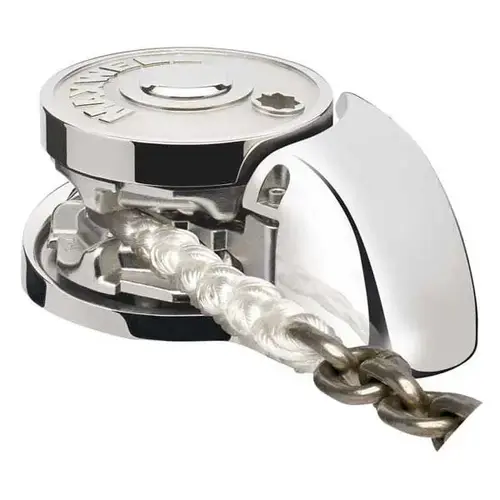

MAXWELL MARINE RC8812V RC8-8 Vertical Windlass, 12V, 1320 lb Pull

Item #: RC8812V by MAXWELL MARINE

Brand: MAXWELL MARINE

See reviewsSee reviews
See reviews summary
In Stock

$2,956.33

/each
SAVE UP TO 295.63
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Retrieval Speed

92' per Minute at 300 Pounds

Minimum Boat Length

30 feet

Maximum Boat Length

43 Feet

Anchoring Speed

Free Fall or Power Down: 105' Chain / 92' Rope per Minute

Maximum Pull

1320 Pounds

Amperage

120 Amps

Type

Rope and Chain Rode

Style

Vertical

Dimensions

6 3/16" Width x 3 5/16" Height x 8 5/16" Length

Material

Stainless Steel

Diameter

5/16" Chain , 5/8" Line

Product Overview
The Maxwell Marine RC8-8 Vertical Windlass (mfr code: RC8812V) is an automatic rope/chain anchor windlass constructed from marine-grade 316 stainless steel and a hard-anodized alloy gearbox. Operating on 12V DC, it provides a maximum pull of 1320 lbs (600 kg) and a working load of 440 lbs (200 kg). It accommodates 5/16" (8mm) HT or BBB short link marine chain and 9/16" to 5/8" (14-16mm) 3-strand or 8-plait rope. The patented Maxwell Wave Design™ chainwheel handles varied chain pitches and reduces rope wear. Designed for easy installation, the low-profile unit features a self-aligning gearbox and allows the motor to be oriented in 10 positions. It includes a dual-direction solenoid, breaker panel, up/down panel switch, and emergency handle for manual override and free-fall anchoring. Suitable for boats 28 to 45 feet (9 to 14 meters
