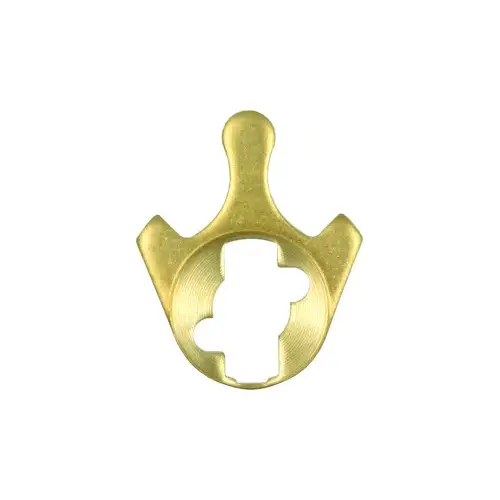

Medeco Security Locks CT-Z99 New Falcon Cloverleaf Type Cam

Item #: CT-Z99 by Medeco High Security Locks

See reviews See reviews

$6.24 /each

SAVE UP TO 0.62

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

168454

CAM Type

Falcon New Clover Cam

Part Type

Cam

MEDECO Rim & Mortise Cylinders

Medeco Rim and Mortise cylinders provide patented key control and the Medeco³ version provides UL437 Physical Security in adaptable retrofit cylinder formats.

Medeco Mortise cylinders have threads on the outside of the shell and are designed to be screwed into other manufacturer's mortise lock cases. A cam on the back of the cylinder operates the lock mechanism and a set screw holds the mortise cylinder in place.

Medeco Rim cylinders are used with auxiliary rim locks such as: surface mounted deadbolts, night latches, panic devices and jimmy proof locks (also know as vertical dropbolts or interlocking deadbolts). Rim cylinders are held in place with a back plate and two mounting screws.

10 series, rim and mortise cylinders, are UL437 Listed for drill and pick resistance, and the those that incorporate the Medeco³, BiLevel, or Medeco X4 design, offer utility patented key control.

Applications
Flexible options designed to retrofit various manufacturers of Mortise and Rim locks

Technical Features:

  • BHMA A156.30 Certification assures patent protected key control and physical strength
  • BHMA A156.5 Grade 1 Certification assures consistent quality for heavy use applications
  • Solid brass construction provides high quality and long cylinder life
  • Set screw pin chamber caps allow quick and easy pinning and re-keying without the need to take the cylinder apart
  • Large variety of cylinder lengths and cam/tailpiece configurations provide excellent retrofit capability and reduce the need to replace the entire locking device

    • Finishes:
    Available in all standard finishes to match existing hardware

    Available Key Technologies:

  • - = Original
  • K = Medeco KM
  • T = Medeco³
  • W = Biaxial
  • J = Medeco³ BiLevel
  • C = Classic CLIQ
  • N = Medeco X4
  • S = M³ CLIQ
  • M = Medeco X4 CLIQ

    • Can Be Masterkeyed
    Medeco³ and BiLevel Rim & Mortise cylinders can be masterkeyed into a system containing Medeco BiLevel and Medeco³ mechanical as well as Medeco³ CLIQ eCylinders.

    Protection From Physical Attack
    Medeco³ Rim & Mortise cylinders are UL 437 listed and stand up to drilling, picking and other forms of physical attack.

    Special Angle Cut Keys
    Requires a special key cutting machine and access to Medeco specific blanks, available in a variety of restrictions to support every need.

    Picking and Bumping Protection
    Medeco³ cylinders use a sidebar that prevent the key from rotating until it is elevated, rotated and aligned in the correct position. This feature protects against bumping and picking attacks.

    Finishes

  • 05 = Bright Brass (US03)
  • 06 = Satin Brass (US04)
  • 09 = Antique Brass (US5)
  • 11 = Bright Bronze (US9)
  • 12 = Satin Bronze (US10)
  • 13 = Dark Bronze/Oil Rubbed (US10B)
  • 18 = Bright Nickel (US14)
  • 19 = Satin Nickel (US15)
  • 20 = Antique Nickel (US15A)
  • 22 = Flat Black (US19)
  • 24 = Dark Bronze/Clear Coat (US20A)
  • 25 = Bright Chrome (US26)
  • 26 = Satin Chrome (US26D)
