CRL CRL8170GE CRL Medium Duty 105 Hold Open Overhead Concealed Closer
Item #: CRL8170GE by CR Laurence
Brand: CRL
11 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Medium duty overhead concealed closer package
- Fits doors 30" to 42" wide range
- 105° hold open function included
- Dual independent closing and latching valves
- UL listed with 5 year limited warranty
- Fits 1-3/4" x 4" header extrusions
- Side load center hung hardware configuration
Closer Body Length
11-5/8 in (295 mm)
Closer Body Width
3-11/16 in (94 mm)
Spring Size
Medium
Type
Center Hung
Hold Open
Yes
Maximum Door Weight
200
UL Listed
Yes
Includes
CRL7170, CRL8010FS, CRL8010S, CRL8010GE
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Similar
CRL8770S
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Bottom Pivot Type
Threshold Mount Pivot
Spindle Length
1/2"
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Double Acting
Degree Hold Open
105°
Spindle
1/2
Product Overview

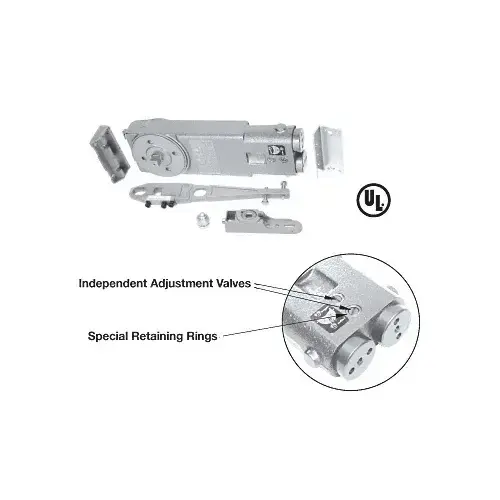

This medium duty overhead concealed closer package is designed for center hung side load applications on doors with 1/2" deep top rails. The assembly is suitable for doors ranging from 30" to 42" wide and is intended for commercial installations requiring controlled door operation. The package includes mounting clips, a side load arm, an adjustable threshold mount bottom pivot set, and installation instructions. The closer body fits into standard 1-3/4" x 4" or larger header extrusions commonly used in aluminum door systems. Dual independent valves provide separate adjustment for closing speed and latching speed, allowing precise tuning for smooth operation. This model features a 105° hold open function for controlled door positioning. The unit is UL listed and carries a 5 year limited warranty, supporting use in regulated commercial environments. It is not intended for doors exceeding 200 lbs. Proper installation within compatible door systems ensures reliable performance and consistent closing control in medium duty applications.
