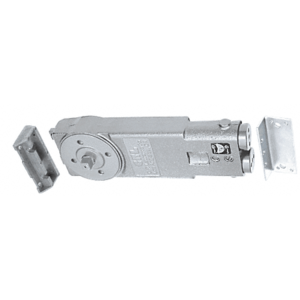

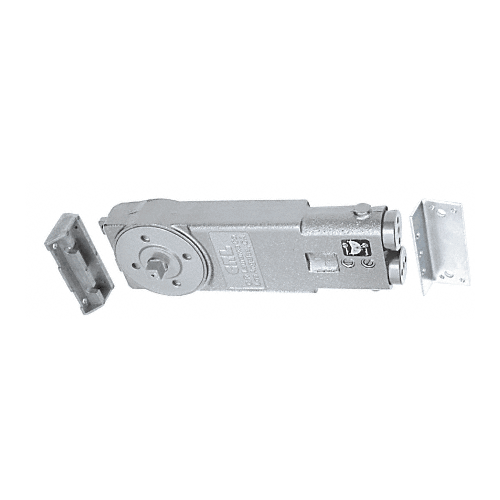

CRL CRL7162 Medium Duty 90 No Hold Open Overhead Concealed Closer Body Only
Item #: CRL7162 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- 20 Models Available
- Conveniently Packaged with Templates and Instructions
- 5 Year Limited Warranty
- UL Listed
Closer Body Width
3-11/16 in (94 mm)
Closer Body Length
11-5/8 in (295 mm)
No Hold Open
90 Degree No Hold Open
Maximum Door Weight
Recommended Door Type
Americans with Disabilities Act (ADA) Compliant
Spindle Length (Inches)
There are two advantages to buying our Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
WEIGHT AND SIZE LIMITATIONS
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
