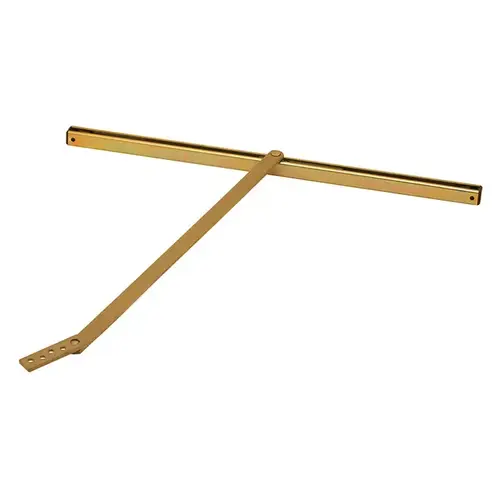

Glynn Johnson 414H10 414H Concealed Overhead Door Holder, Satin Bronze
Item #: 414H10 by Glynn Johnson
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Medium Duty Overhead Door Holder and Stop Offers Additional Door Control but is a Completely Concealed Solution to Keep the Door Aesthetically Pleasing
- For Interior Applications
- Improved Corrosion Resistance
- Non Handed Design for Simple Installation and Stocking
- Compatible with Single and Double Acting Doors for Ease of Installation and Stocking
Finish
Satin Bronze
Function
Holder/Stop
Series
410 Series
Mount
Concealed
Finish Description
Satin Bronze
Product Type
Door Closer/Holder/Stop
For Door Thickness
1-3/4 Inch
Product Size
4
Hold Open-Stop Range
85° to 110°
Manufacturer Parent
Allegion
Corrosion Resistant
Yes
For Use With
Interior Doors
Sub-Series
DC_Overhead Holders and Stops_glynn_johnson_13
ADA Compliant
No
Mounting Type
Concealed
Application
Interior Applications
Door Opening
33-1/16" to 39" (Butt/Offset Pivots)
Jamb Bracket Length
2-7/8 Inch
Function Family
Overhead Door Holder
Door Size
33-1/16 Inch to 39 Inch
Features
Simple Installation and Stocking; Compatible With Single- and Double-Acting Doors for Ease of Installation and Stocking; Easy to Install; Durable
Color Code
612/US10
Jamb Bracket Height
3/4 Inch
Jamb Bracket Width
3/16 Inch
Finish Family
Satin Bronze
Product Overview
410 Series Medium-Duty Concealed Overhead Door Holders/Stops
410H hold-open model
The perfect combination of form and function, Glynn-Johnson 410 Series holders and stops offer effective door control and a low-profile design. Each model is constructed so that the channel is encased in the door and the jamb bracket is mortised in the frame. When the door is open, the arm and jamb bracket are visible. Conversely, when the door is in the closed position, the entire holder is completely concealed.
These versatile models can be used with most surfaceapplied door closers. The provided templates allow for variable mounting positions, ranging from 85° to 110° of opening. These templates are designed for installation in almost all types of doors, including doors with conventional butt-type hinges or specialty hinges.
410H hold-open model
(Suffix H) Hold-open models provide a convenient method of holding the door open at a predetermined position for short or long periods of time, permitting an unobstructed traffic flow. The hold-open tension can be adjusted using an allen wrench through the end of the slider located in the channel mounted in the top of the door.
These models feature a rugged, automatic hold-open mechanism activated when the door is opened to a preset angle. Each model meets the 250,000 test cycles required for Grade 1 classification. The hold-open feature is not selectable, so the door is always held open
