Jobber Length Drill Bit: 31/64" Dia, 118 degree, High Speed Steel Oxide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

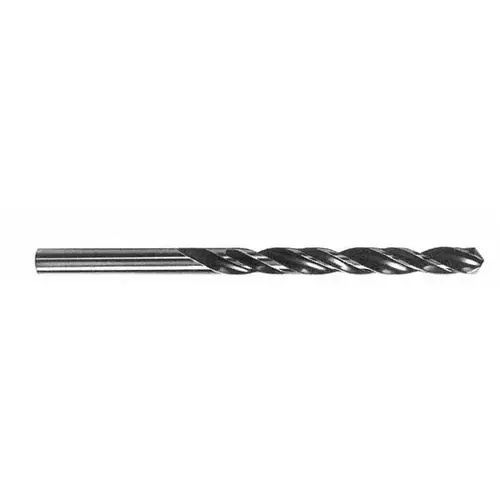

Michigan Drill 314 31/64 Jobber Length Drill Bit: 31/64" Dia, 118 degree, High Speed Steel Oxide

Item #: 314 31/64 by Michigan Drill

UPC #: 728012224480

See reviewsSee reviews
See reviews summary
In Stock

$25.23

/each
SAVE UP TO 2.52
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 22 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

314

Point Type

Split Point

Drill Bit Material

High Speed Steel

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

Oxide

Coolant Through

No

Double Margin

Yes

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.4844

Drill Bit Size (Inch)

31/64

Drill Bit Size Range (Decimal Inch)

0.4000 - 0.5000

Drill Point Angle

118 degrees

Flute By Diameter Ratio

9xD

Flute Length (Decimal Inch)

4.3750

Flute Length (Inch)

4-3/8

Maximum Drilling Depth (Decimal Inch)

4.3750

Maximum Drilling Depth (Inch)

4-3/8

Number of Flats

0

Overall Length (Decimal Inch)

5.8750in

Overall Length (Inch)

5-7/8in

Shank Diameter (Decimal Inch)

0.4844

Shank Diameter (Inch)

31/64in

Shank Length (Decimal Inch)

1.5000in

Shank Length (Inch)

1-1/2in

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Specification Designation

ANSI

Web Configuration

Tapered

Web Thinning

Web-Thinned

Product Overview
Jobber Length Drill Bit: 31/64" Dia, 118 degree, High Speed Steel Oxide/Gold Coated, 5-7/8" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 314
