SW800C Smart Swing Door Operator

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

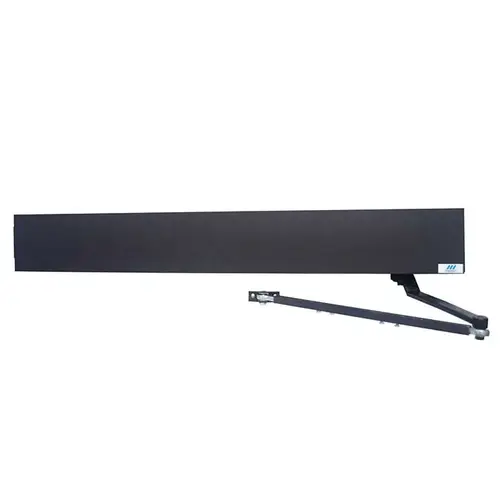

Micom SW800C-SG-B-1-SS-LHR-39 SW800C Smart Swing Door Operator

Item #: SW800C-SG-B-1-SS-LHR-39 by Micom

See reviewsSee reviews
See reviews summary

$2,061.57

/each
SAVE UP TO 206.16
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish Family

Black

Battery Backup

NO

Series

SW800C Series

Motor Type

1/4 hp 24VDC Permanent Magnet Motor

For Door Width

36 Inch

Warranty

3 year

Minimum Door Width

29 Inches

Features

Reverse on Obstruction; Wind Control Built in Adjustable Back check

Product Type

Door Operator

Standards

UL325/UL991 Listed; CAN/CSA – C22.2 No. 0.8 Listed; UL10C – Rated 2 Hours; Conforms with ANSI A156.10 / ANSI A156.19

Power Output

12/24 VDC @ 1.2A

Mount

Push Side

Function Family

Power Door Operator

Application

Condos; Hospitals; Educational Institutions

Mounting Type

Push Side

ADA Compliant

YES

Sub-Series

EAC_Door_Operators_Micom_1

Hand

Left Hand Reverse

Function

Push Side Operator

Power Input

100 VAC - 240 VAC

Finish Description

Black

Maximum Door Weight

700 lbs.

Closer Arm Type

Regular Arm

Handing

Left Hand Reverse

Manufacturer Parent

Micom Americas Inc

healthy_solution

Touchless

Product Overview
SW800 Smart SwingSingle Door Operator

Micom Americas Inc. Smart Swing 3® Low Energy Swing Door Operator, a carefully engineered automatic swing door operator is non-handed and ideal for varied applications, providing multifunction use and service across a wide range of applications.A fully automatic and low energy swing door operator in one. Designed to offer long term durability and continuous barrier free access for all.

Features:
  • Adjustable Opening Speed
  • Adjustable Back Check Speed & Back Check Position
  • Adjustable Closing Speed
  • Adjustable Latching Speed & Latching Position
  • Adjustable Hold-Open Time between 1-60 seconds
  • Reverse on Obstruction
  • Optional Push & Go Built in with Separate Adjustable Hold-Open Time
  • Fully Adjustable Electronic Door Stop
  • Power to Activate Electric Lock Adjustable 12/24 Volts DC
  • Electric Lock Delay to Prevent Door Binding
  • Fully Adjustable Power Close
  • Wind Control Built in Adjustable Back check
Specifications: Handing:
  • Non-handed
Header Size:
  • 5 1/2" high x 4 1/2" deep(140mm x 114mm)
Operating Temperature:
  • -10F to +140F
Max Door Weight:
  • 700 lbs (318skg) per leaf
Operator Dimensions:
  • 5 1/2" (140 mm) x 4 1/2" (115mm)
Operator Net Weight:
  • 16kg Approx.
Power Supply:
  • 90V ~ 250V AC, 50/60Hz
Consumption:
  • 100W Max
Motor:
  • 1/8 hp, 24VDC, 3A max
Finishes:
  • Silver
  • Black
