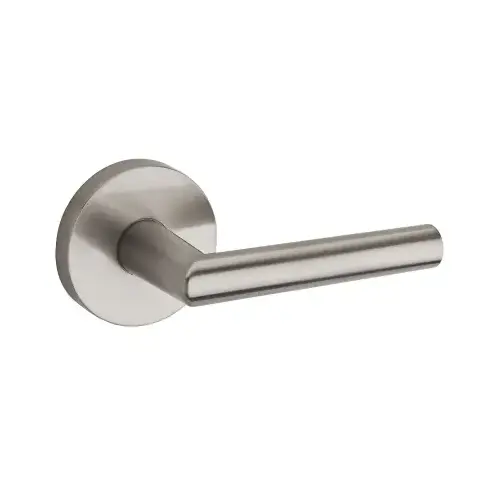

Milan Round Passage Door Lock with 6AL Latch and RCS Strike Satin Nickel Finish

Roll over image to zoom in

Kwikset 154MILRDT-15Click To Copy Milan Round Passage Door Lock with 6AL Latch and RCS Strike Satin Nickel Finish

Item #: 154MILRDT-15 by Kwikset

UPC #: 883351647595

See reviewsSee reviews
In Stock

$44.12

/each
SAVE UP TO 4.41

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 191 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • A Round Contemporary Lever, Milan'S Minimal Style Offers Design For Those Interested In A Playful, Yet Elegant Aesthetic.
  • Reversible Lever Fits Both Left And Right-Hand Doors
  • Ansi/Bhma Grade 2 Certified
  • Exposed Screws On The Interior Lever
  • Alignment Post For Easy Install
  • Strengthened Springs To Ensure Lever Stays Level Over Time
  • Lifetime Mechanical And Finish Warranty

Lever Length

4.15625

Backset

2-3/4", 2-3/8", Adjustable

Latch Faceplate

Round Corner

Cross Bore

2-1/8"

Door Thickness

1-3/4", 1-3/8"

Shape

Straight

Style

Modern

Rose Diameter

2.625

Function

Passage

Handing

Field Reversible

Concealed Screws

No

ADA

Yes

Rosette Shape

Round

Collection

Milan

Edge Bore

1"

Theme

Modern

Finish

Satin Nickel

Series

Contemporary, Signature Series

Design

Milan Round

Configuration

Lever Set

Projection

2.5625

Manufacturer Warranty

Lifetime Limited Mechanical

BHMA Certification

Grade 2

Handle Material

Metal

ANSI Certification

A156.2

Strike

Round Corner Full Lip Strike

Handle Length

4.1562

Handle Projection

2.5625

Trim Height

2.625

Trim Width

2.625

Warranty

Lifetime mechanical and finish warranty

Pack Size

1

UNSPSC

46171500

Strike Size

2-1/4" Full Lip

Manufacturer Parent

Spectrum

Finish Description

Satin Nickel

Faceplate Dimension

1" x 2-1/4"

Latch Type

6-Way Adjustable

Function Description

Latch retracted by knobs/levers at all times

Clearance

true

ANSI Function

F75

Grade

Grade 2

Sub-Series

RL_Lever_Locksets_kwikset_39

Lever Style Family

Straight Lever

Door Preparation

Cross Bore 2-1/8" or 1-1/2"; Edge Bore 1"

ADA Compliant

YES

Lever Length-Inches

4.156 Inch

Door Cross Bore

2.125 Inch

Product Height

2-5/8 Inches

Application

Hallway Door; Closet Door

Box Dimensions (L x W x H)

3.19x6.13x7.88

Function Family

Passage/Hall/Closet

Standards

ADA/ANSI A117.1; ANSI/BHMA

Lever Style

MIL-Milan

Product Type

Cylindrical Lock

Rose/Escutcheon Trim

RDT-Round Rose

Product Projection

2-9/16 Inch

Features

Easily Installs in Minutes With Just a Screwdriver

Product Material

Zinc

Color Code

619/US15

Strike Type

Round Corner

Product Length

4.16 Inches

Included Components

Passage Levers; Roses; Latch; Strike; Mounting Hardware

Clearance Date

221222

Finish Family

Satin Nickel

Alternate Part Number-1

158406

Latch Bolt Type

Springlatch

Knob/Lever Design

Milan

Rose/Escutcheon Size

2-5/8"

Latch Bolt Faceplate Size

2-1/4" x 1"

Door Bore Size

2-1/8"

Door Thickness Min

1-3/8"

Latch Bolt Face Type

Round Corner, Square Corner

Latch Bolt Throw

1/2"

Rose/Escutcheon Style

Round Rose

Door Thickness Max

1-3/4"

Knob/Lever Style

Lever

Cylinder Included

No

Height

3.19

Length

7.88

Width

6.13

Hazardous Material

No

Country Origin Code

TW

Package Height

3.311"

Package Length

7.417"

Package Width

6.062"

Item Weight

1.76 lbs

Product Overview
Milan LeverKwikset Signature Series

Kwikset's popular line of contemporary door locks, introduces keyed entry and interior pack options for a playful, yet elegant aesthetic.

Specifications: Door Prep:
  • Crossbore 2-1/8" or 1 -1/2"
  • Edge Bore 1"
Backset:
  • Adjustable to 2-3/8" or 2-3/4"
Door Thickness:
  • 1-3/8" - 1-3/4"
Cylinder:
  • SmartKey®
Faceplates:
  • 1" x 2-1/4"; Square, round, or drive-in
Strikes:
  • 1-3/4" x 2-1/4"; Square or round corner
ANSI/BHMA:
  • A156.36 Grade 2
UL:
  • 20 minute UL fire rating available
Door Handing:
  • Reversible for right or left hand doors
ADA:
  • Satisfy section 4.13.9 ADA requirement
Warranty:
  • Lifetime Mechanical and Lifetime Finish
Functions: Passage/Hall/Closet:
  • Both levers always free. – 154MIL
Privacy/Bed/Bath:
  • Both levers locked or unlocked by turnbutton inside. Outside lever unlocked by emergency key. – 155MIL
Keyed Entry Lever:
  • Both sides locked or unlocked by key outside or turnbutton inside. – 156MIL SMT
Half Dummy Trim, Surface Mounted:
  • For doors where only a pull is required. No operation. – 157MIL
Interior Pack:
  • Outside handleset. Inside lever. – 966MIL
Finishes:
  • 11P - Venetian Bronze
  • 15 - Satin Nickel
  • 26 - Polished Chrome
  • 26D - Satin Chrome
  • 514 - Iron Black
