Mill 3-1/2" Extruded Aluminum Cap Rail for 1/2" or 5/8" Glass - 240"

Roll over image to zoom in

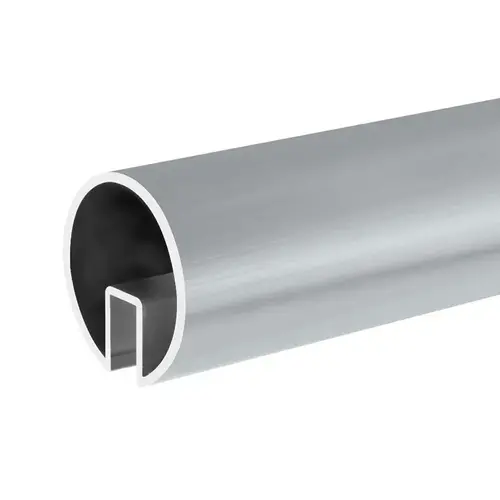

CRL GR35M Mill 3-1/2" Extruded Aluminum Cap Rail for 1/2" or 5/8" Glass - 240"

Item #: GR35M by CR Laurence

See reviews See reviews

In Stock $467.08 /each

SAVE UP TO 46.71

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Available for 1/2", 9/16" or 5/8" (12, 13.52, or 16 mm) and 3/4" (19 mm) Glass
  • Connects to a Variety of Fabricated Corners and End Caps
  • Custom Shapes and Sizes are Available
  • Use Sleeve Number GR35CSM






.125" (3.2 mm)

"D" Depth

2-3/16" (55.8 mm)

"W" Width

3/4" (19 mm)


Extruded Cap Rail


6063-T6 Aluminum



Glazing Thickness

1/2 or 5/8



CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
