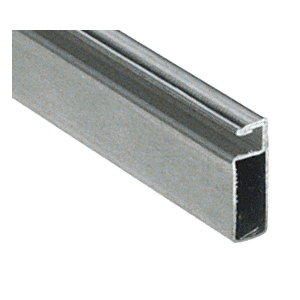

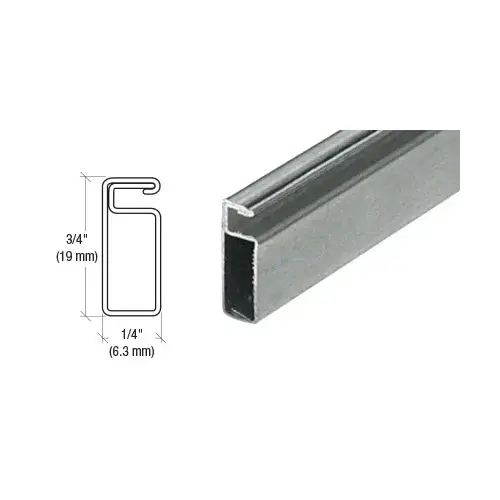

This CRL 3/4" x 1/4" (19 x 6 mm) Screen Frame is made of .019 mil thick roll formed aluminum. It is cambered (slightly bowed) to retain screen tension when installed. It accepts CRL .140" Spline. Use either WSC104 Aluminum Corners for mitered frame corners or SWSC14 Series Square Cut Plastic Corners for a square cut frame application.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .019" (.48 mm)
Uses Spline Size: .140" (3.6 mm)
Uses Corners: WSC104 for Mitered Corners; SWSC14 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL WSF344M Mill 3/4" x 1/4" Roll Formed Aluminum Screen Frame - 144"
Item #: WSF344M by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Typical Applications Include Sliding Windows and Storm Windows
- .019" (.48 mm) Wall Thickness
- Several Finishes Available
Length
144
Finish
Mill
Height
3/4
Wall Thickness
0.019
Width
1/4
Finish/Color
Mill
Roll Formed
Yes
Extruded Frame
Yes
Product Overview
This CRL 3/4" x 1/4" (19 x 6 mm) Screen Frame is made of .019 mil thick roll formed aluminum. It is cambered (slightly bowed) to retain screen tension when installed. It accepts CRL .140" Spline. Use either WSC104 Aluminum Corners for mitered frame corners or SWSC14 Series Square Cut Plastic Corners for a square cut frame application.
SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .019" (.48 mm)
Uses Spline Size: .140" (3.6 mm)
Uses Corners: WSC104 for Mitered Corners; SWSC14 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll forming process, stock thicknesses can range from the advertised thickness plus or minus .002" (.05 mm). This is standard in the industry.
