This CRL Interior slip-fit Vertical Corner is for 3/4" (19 mm) thick glass which allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail and are welded and finished to match. Our aluminum corners are welded for painted finishes only. All anodized finishes utilize a custom fabricated internal splice that creates an architecturally pleasing mitered joint. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. Please contact DK Hardware Sales for more information or a quote.
NOTE: When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass.
Product Warning:
Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl. Use Only Stainless Steel Connector Sleeves.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL GR307VM Mill 3" 90 Degree Vertical Corner for 3/4" Glass Cap Railing
Item #: GR307VM by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Ready to Install
- Several Architectural Finishes Plus Mill Aluminum
- Requires Two Connector Sleeves (Not Included)

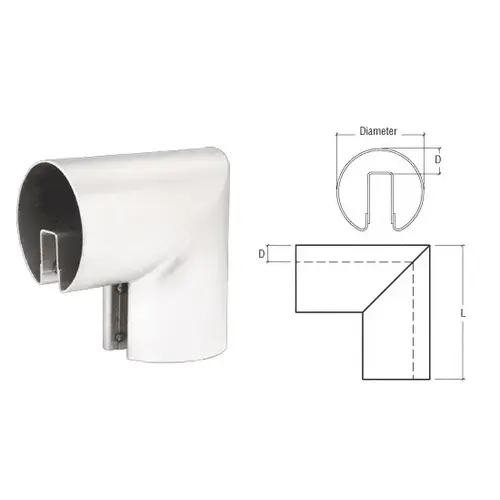

*Dimension "D"
1-3/8" (35 mm)
Dimension "L"
5" (127 mm)
Shipping Weight
8 oz (227g)
Finish
Mill
Material
Aluminum
alloy
6063-T6
Finish/Color
Mill
Angle (Degrees)
90
Diameter
3
Angle
90
Product Overview
This CRL Interior slip-fit Vertical Corner is for 3/4" (19 mm) thick glass which allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each Corner.
Each Vertical Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail and are welded and finished to match. Our aluminum corners are welded for painted finishes only. All anodized finishes utilize a custom fabricated internal splice that creates an architecturally pleasing mitered joint. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. Please contact DK Hardware Sales for more information or a quote.
NOTE: When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass.
Product Warning:
Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl. Use Only Stainless Steel Connector Sleeves.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
