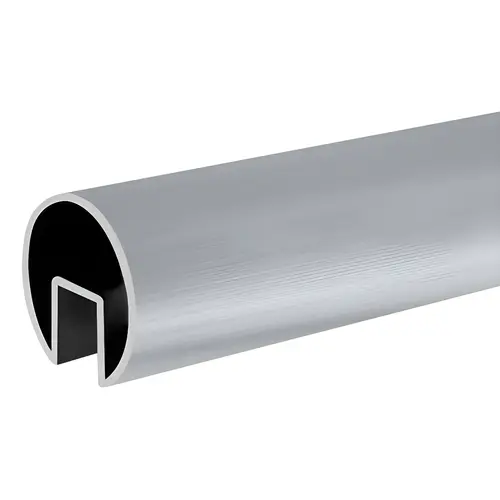

CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 3/4" (19 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Available for 1/2", 9/16" or 5/8" (12, 13.52, or 16 mm) and 3/4" (19 mm) Glass
- Connects to a Variety of Fabricated Corners and End Caps
- Custom Shapes and Sizes are Available
- Use Sleeve Number GR30CSM
Grade
6063-T6
Thickness
.125" (3.2 mm)
"D" Depth
1-11/16" (43 mm)
"W" Width
1" (25.4 mm)
Type
Extruded Cap Rail
Finish
Mill
Material
6063-T6 Aluminum
Length
240
Glazing Thickness
3/4
Finish/Color
Mill
Diameter
3
Product Overview
CRL Extruded Aluminum Cap Rails are extruded from alloy 6063-T6, which is suitable for custom finishes such as anodizing, powder coating, etc. Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails.
Please contact DK Hardware Sales for more information or a quote.
NOTE: Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 3/4" (19 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or allow an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
