CRL Interior Slip-Fit Vertical Corners for 1/2" (12 mm), 9/16" (13.52 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Vertical Corner is fabricated and individually packed. Our mill aluminum corners are welded for painted finishes only. The Internal Corner Splices create an architecturally pleasing mitered joint. Please contact DK Hardware Sales Department for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

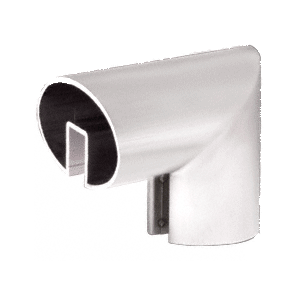

CRL GR0V4VM Mill 4" X 2-1/2" Aluminum Oval 90 Degree Vertical Corner for 1/2" or 5/8" Glass Cap Railing
Item #: GR0V4VM by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- New Oval Corner in 6063-T6 Mill Aluminum Alloy
- Ready-to-Install
- Requires Two Connector Sleeves (Not Included)
- Welded and Ready to Paint
*D
1-1/8" (28.6 mm)
Grade
6063-T6
Dimensions
L=6" (152.4 mm) and D=1-1/8" (28.6 mm)
Length
6" (152.4 mm)
Color
Mill
Angle (Degrees)
90
Finish/Color
Mill
Material
6063-T6 Aluminum
Finish
Mill
Diameter
4 X 2-1/2 Oval
Angle
90
Product Overview
CRL Interior Slip-Fit Vertical Corners for 1/2" (12 mm), 9/16" (13.52 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Vertical Corner is fabricated and individually packed. Our mill aluminum corners are welded for painted finishes only. The Internal Corner Splices create an architecturally pleasing mitered joint. Please contact DK Hardware Sales Department for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
This dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
