CRL B6 Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. The five engineered methods of attachment can be found in our HR11 catalog on pages B132 to B133, and associated fasteners are shown on pages B156 to B157. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion.
Powder coated cladding applied over the base shoe is the recommended method.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

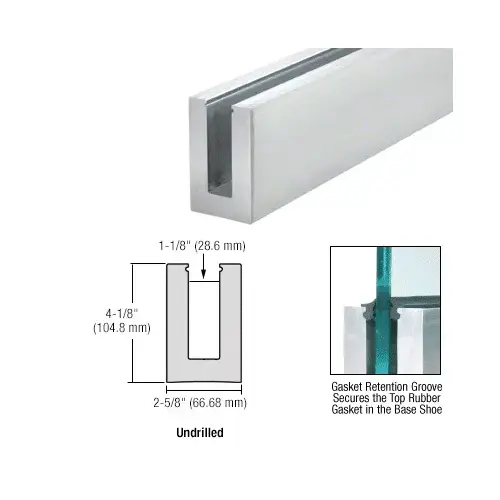

CRL B6N10 B6N Series Mill Aluminum 120" Standard Square Base Shoe Undrilled for 5/8" Glass
Item #: B6N10 by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 5/8" Monolithic Tempered Glass (Thickness Range 15.09 to 16.66 mm) (.595" to .656")
- Typically Used as the Base Channel for Glass Railing Systems
- Undrilled Base Shoe
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269
Stock Length
120" (3.05 m)
Counter Bore X Depth
Extrusion Only (Without Holes)
Material
Aluminum
Type
Un-drilled
Length
120
Width
2-5/8
Glazing Thickness
5/8
Glazing Type
Monolithic
Finish/Color
Mill
Glass Included
No
Height
4-1/8
Finish
Mill
Product Overview
CRL B6 Series Standard Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. The five engineered methods of attachment can be found in our HR11 catalog on pages B132 to B133, and associated fasteners are shown on pages B156 to B157. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion.
Powder coated cladding applied over the base shoe is the recommended method.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
