CRL Standard Small Profile Windscreen Base Shoe for 3/8" or 1/2" (10 or 12 mm) tempered glass is typically used as the base channel for windscreens and privacy partitions. It is not recommended for Hand Rail/Guard Rail applications. Most standard glass windscreen applications use 3/8" (10 mm) monolithic tempered glass. Each glass panel is secured in the base shoe using CRL's Patented Dry Glazed TAPER-LOC System. NOTE: If 1/2" (12 mm) glass is required, use CRL's Wet Glaze Method.
Product Warning:
All heavy Base Shoes have a stock length tolerance of plus or minus 3/4" (19 mm).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

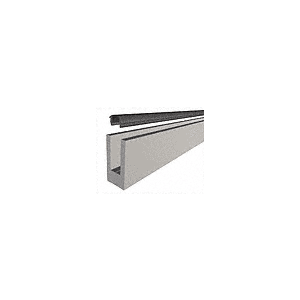

CRL W5B10D Mill Aluminum 120" Small Profile Windscreen Base Shoe for 3/8" or 1/2" Glass - With Drilled Holes
Item #: W5B10D by CR Laurence
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For 3/8" to 1/2" (10 to 12 mm) Monolithic Tempered Glass
- Available Pre-Drilled in 10 and 20 Foot Lengths
- Available in Drilled and Counter Bored, or We Will Custom Drill to Your Specifications
- 6063 Alloy, T52 Temper
Hole Size
11/32" (9 mm)
Stock Length
120" (3.05 m)
Center-to Center Hole Spacing
12 in (305 mm)
Center-to-Center
12" (305 mm)
Counter Bore X Depth
47/64" x 1/4" (19 x 6 mm)
Countr Bore x Depth
47/64" x 1/4" (19 x 6.3 mm)
Height
2-3/4
Finish
Mill
Material
Aluminum
Length
120
Width
1-3/8
Profile
With Drilled Holes
Drilling Center to Center
12
Finish/Color
Mill
Glazing Thickness - Monolithic
1/2 Inch
Glazing Thickness - Dry Glaze
3/8 Inch
Product Overview
CRL Standard Small Profile Windscreen Base Shoe for 3/8" or 1/2" (10 or 12 mm) tempered glass is typically used as the base channel for windscreens and privacy partitions. It is not recommended for Hand Rail/Guard Rail applications. Most standard glass windscreen applications use 3/8" (10 mm) monolithic tempered glass. Each glass panel is secured in the base shoe using CRL's Patented Dry Glazed TAPER-LOC System. NOTE: If 1/2" (12 mm) glass is required, use CRL's Wet Glaze Method.
Product Warning:
All heavy Base Shoes have a stock length tolerance of plus or minus 3/4" (19 mm).
