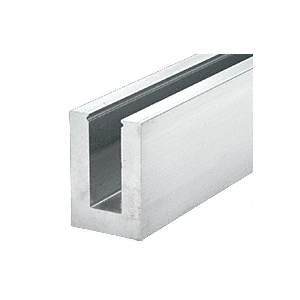

CRL B7S20F6 B7S Series Mill Aluminum 240" Heavy-Duty Square Base Shoe Fascia Mount Drilled for 3/4" Glass
Item #: B7S20F6 by CR Laurence
See reviews See
reviews
In Stock $1,582.12 /each
SAVE UP TO 158.21
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- For 3/4" (19 mm) Monolithic Tempered Glass
- Typically Used as the Base Channel for Glass Railing Systems in Arenas
- Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
- Custom Cutting and Mitering Service
- Test Reports Available
- CRL Glass Railing Systems Meets NBC Load Requirements When Installed in Accordance to ICC-3269
Hole Size
9/16" (14.3 mm)
C.T.C.
6" (152 mm)
Counter Bore X Depth
7/8" (22 mm) x 1/2" (12.7 mm)
Stock Length
240" (6.10 m)
Holes Drilled C.T.C.
6" (152 mm)
Height With Casters
81" (2.06 m)
Finish
Mill
Material
Aluminum
Length
240
Glazing Thickness
3/4
Profile
Drilled
Glazing Type
Monolithic
Drilling Center to Center
6
Finish/Color
Mill
The CRL B7S Series Heavy-Duty Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper
attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
Product Warning:
CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method.
All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
.
