CRL  Mill Aluminum Square Heavy-Duty Base Shoe Drilled with Hole Pattern "D" - 10' Long
Qty
+
$798.94   /each

CRL B7S10D6 Mill Aluminum Square Heavy-Duty Base Shoe Drilled with Hole Pattern "D" - 10' Long

  • For 3/4" (19 mm) Monolithic Tempered Glass
  • Typically Used as the Base Channel for Glass Railing Systems in Arenas
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available
See Full Product Description
SALE

$798.94 /each

Qty

In stock
Special Order

Usually ships in 1-2 weeks*

SALE
+
In stock Special Order

Usually ships in 1-2 weeks*

Have a Question?

Chat with our Expert


Description

  • For 3/4" (19 mm) Monolithic Tempered Glass
  • Typically Used as the Base Channel for Glass Railing Systems in Arenas
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available

  • Product Description
  • Technical Details 12
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Counter Bore and Depth

7/8 x 1/2 in (22.2 x 12.7 mm)

Hole Size

9/16" (14.3 mm)

Center to Center

6" (152 mm)

Minimum Order

1 Each

Stock Length

120" (3.05 m)

Counter Bore X Depth

7/8" (22 mm) x 1/2" (12.7 mm)

Holes Drilled C.T.C.

6" (152 mm)

Height with Casters

81" (2.06 m)

  • For 3/4" (19 mm) Monolithic Tempered Glass
  • Typically Used as the Base Channel for Glass Railing Systems in Arenas
  • Drilled and Counter Bored 6" (152 mm) Center-to-Center, or We Will Custom Drill to Your Specifications
  • Custom Cutting and Mitering Service
  • Test Reports Available

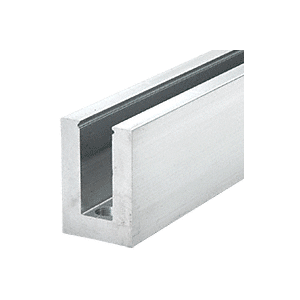

The CRL B7S Series Heavy-Duty Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.
GLASS SPECIFICATONS:
3/4" (19 mm) Thick Glass when using TAPER-LOC® Dry Glaze System or Wet Glaze System. Important Notes: CRL does not recommend direct powder coating of this base shoe extrusion. Powder coated cladding applied over the base shoe is the recommended method. All pre-drilled CRL Base Shoes have a +1/8 (3 mm)/-1/16 (1.5 mm) tolerance between each hole drilled in the base. Before drilling installation holes in the concrete or steel substrate it is recommended that the installer place the base shoe into the planned final position, then mark the position of the holes to be drilled into the substrate.
